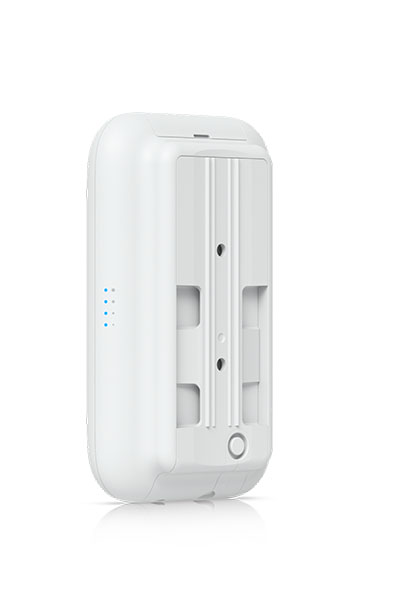

Ubiquiti UK-Ultra
Ubiquiti's UK-ULTRA is an indoor and outdoor,
IPX6 WiFi 5 dual band access point with versatile
mounting options and external antenna support via two RP SMA connectors. It is
capable of reaching up to 1167Mbps aggregate over both 2.4GHz and 5GHz 2x2 MIMO
radios.
- AVAILABILITY: In Stock
- PRODUCT CODE: 100-10222
- CATEGORY: Networking
Wi-Fi 5 (IEEE 802.11ac)
Indoor/Outdoor

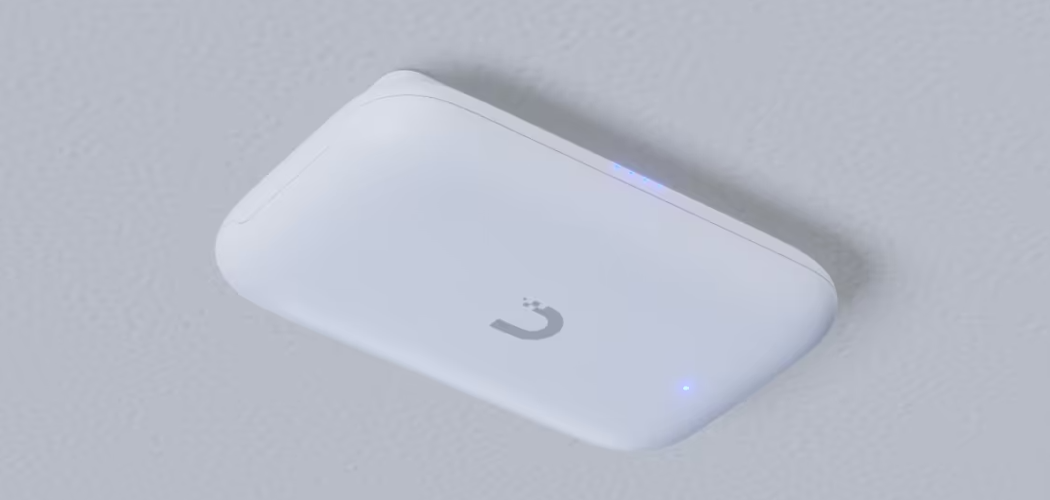

Celling Mounted

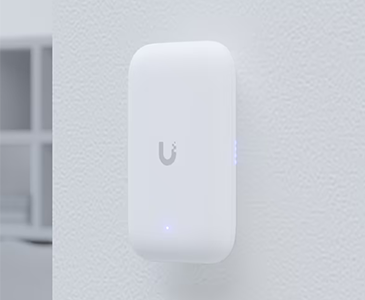

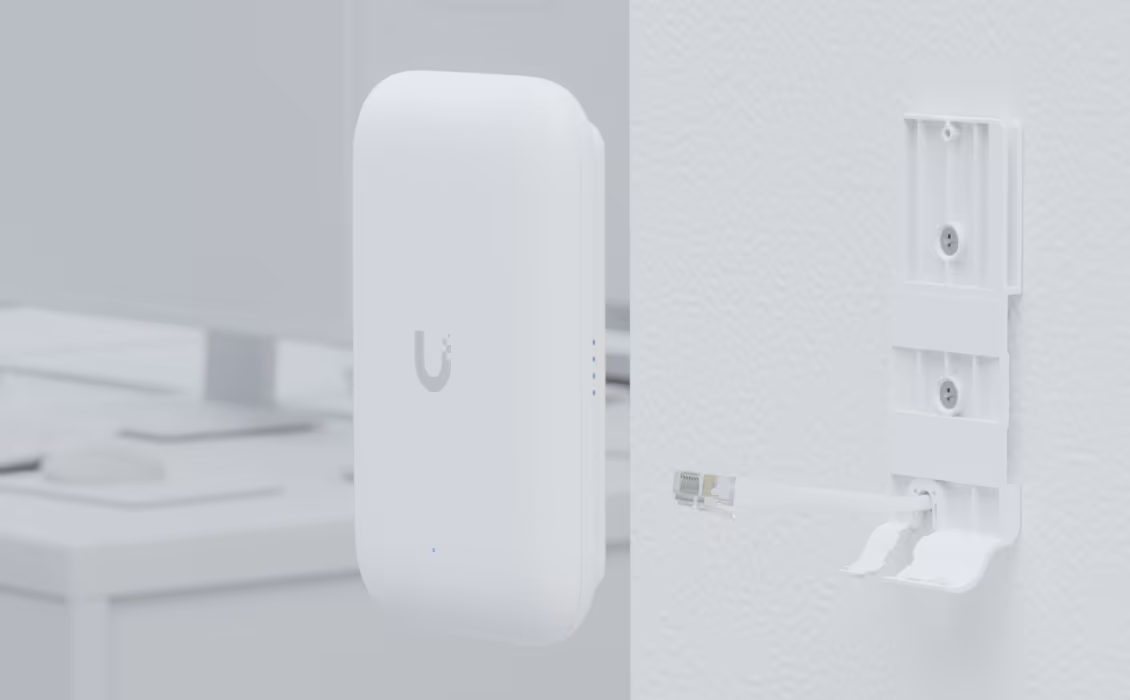

Wall Mounted

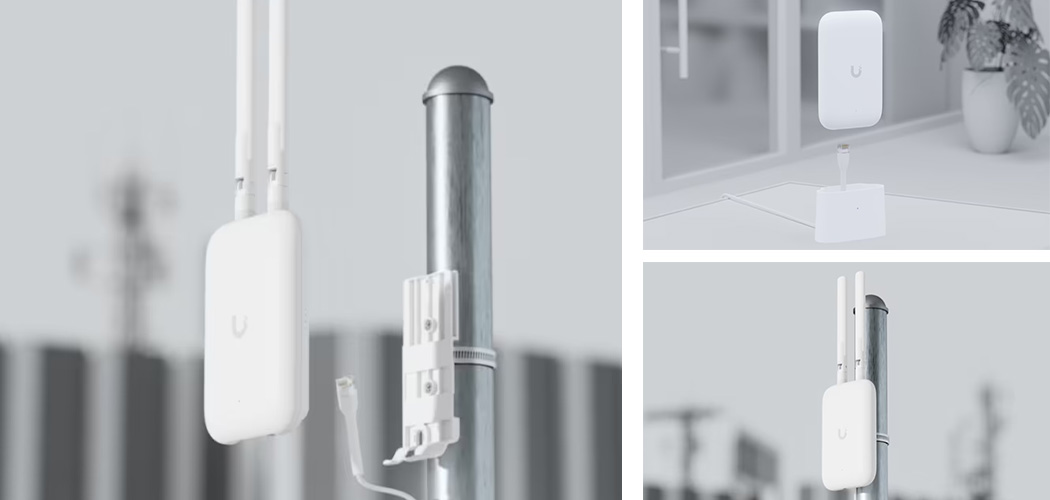

Pole Mounted
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 137 x 84 x 34 mm (5.4 x 3.3 x 1.3") |
| Weight | 173 g (6.1 oz) |
| Enclosure material | UV-stabilized polycarbonate |
| Mount material | Polycarbonate, SGCC steel, plastic |
| Pole mount diameter | 1~2" on pipe outer diameter |
| Wind survivability | 33.2 N at 200 km/h (7.5 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Management interface | Ethernet |
| Power method | PoE |
| Power supply | UniFi PoE Switch |
| Supported voltage range | 44—57V DC |
| Max. power consumption | 8W |
| Max. TX power 2.4 GHz 5 GHz 6 GHz | 20 dBm 20 dBm – |
| MIMO 2.4 GHz 5 GHz 6 GHz | 2 x 2 (DL MU-MIMO) 2 x 2 (DL MU-MIMO) – |
| Max. data rate 2.4 GHz 5 GHz 6 GHz | 300 Mbps (BW40) 866.7 Mbps (BW80) – |
| Antenna gain 2.4 GHz 5 GHz 6 GHz | 4.7 dBi 6.1 dBi – |
| Antenna | (1) Internal antenna (2) RP-SMA connectors for optional external antennas |
| LEDs | (1) Power: white/blue (4) Mesh signal: blue |
| Button | Factory reset |

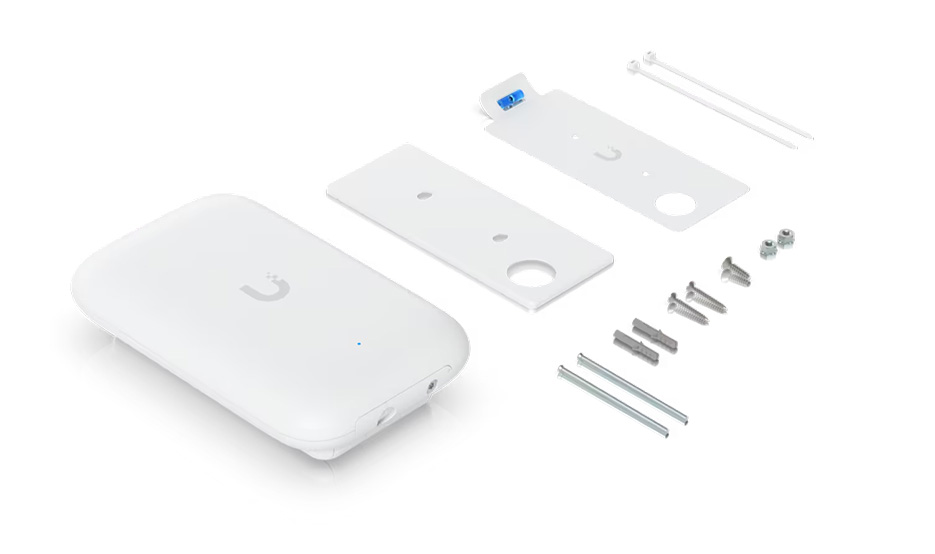

| Mounting | Wall, ceiling, pole (Included) |
| Ambient operating temperature | -40 to 60° C (-40 to 140° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11a/b/g/n/ac |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 200+ |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11ac | 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| Application Requirements | |
| UniFi Network | Web: Version 8.0.7 and later iOS™: Version 10.11.1 and later Android™: Version 10.10.1 and later |
-
Data SheetDownload
