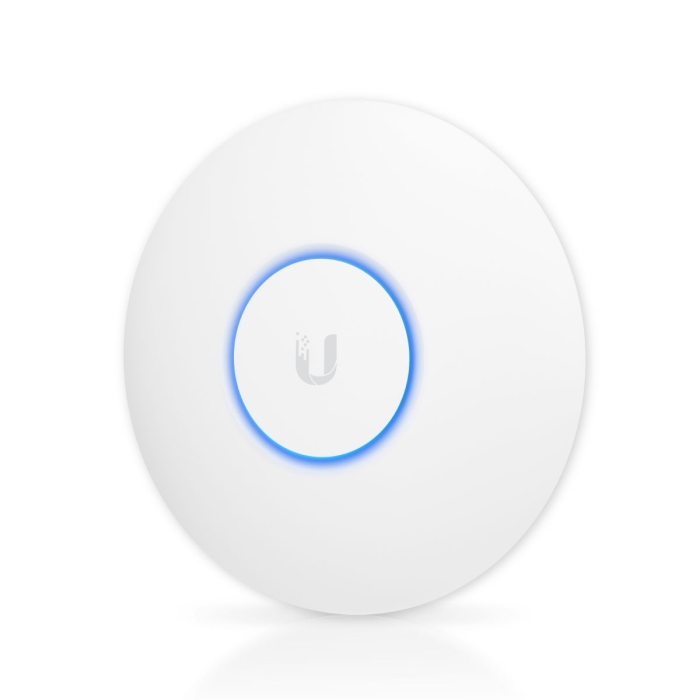

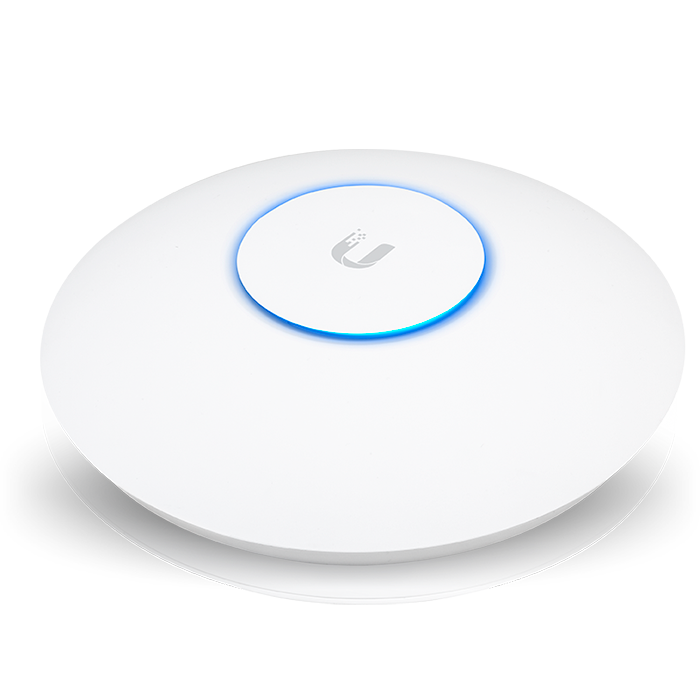

Ubiquiti U6-Pro
The U6-PRO is the successor to Ubiquiti's UAP-AC-PRO and features WiFi 6 (802.11ax) technology. The U6-PRO operates at 2x2 MIMO and OFDMA on the 2.4Ghz band and full 4x4 MU-MIMO and OFDMA on the 5Ghz band with 160 MHz channels to create high-capacity wireless uplinks and facilitate faster data transfer.
The U6-PRO is able to serve over 350 concurrent clients to ensure reliable wireless coverage, even on deployments with high levels of traffic density; also supported is Guest Traffic Isolation, allowing you to enhance network security and lower traffic congestion for larger-scale deployments with a greater number of connections. Management is made easy via the UniFi Controller or UniFi Network app which allows for streamlined set up and configuration
- AVAILABILITY: In Stock
- PRODUCT CODE: 100-10232
- CATEGORY: Networking
Wi-Fi 6 (IEEE 802.11ax)
Indoor

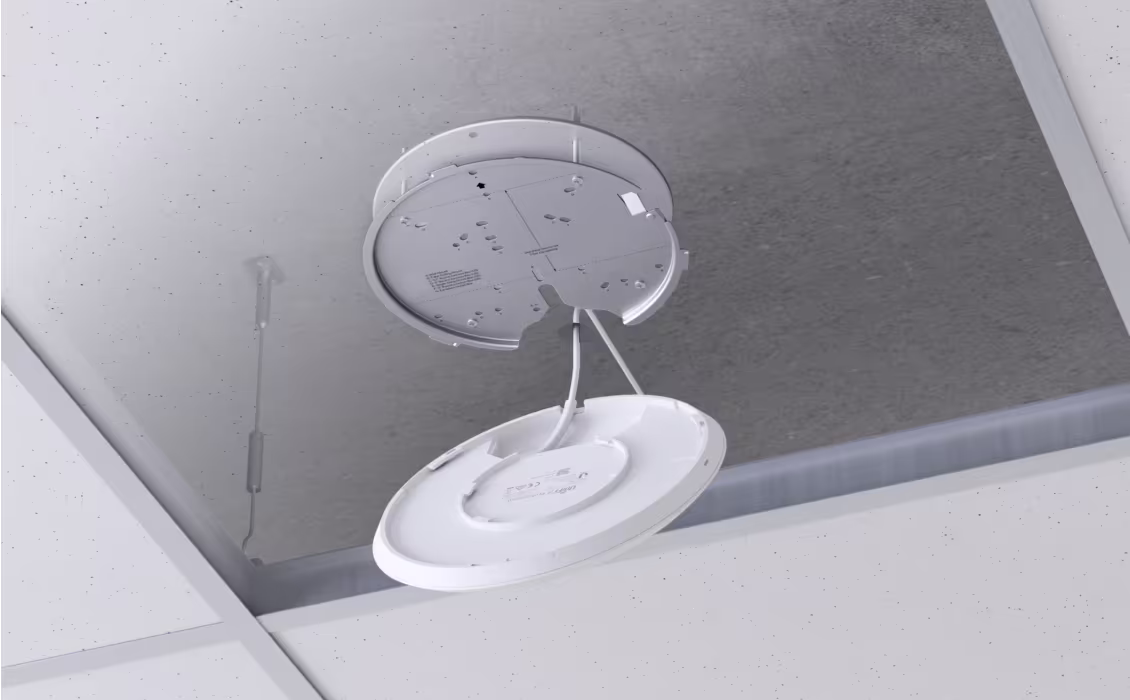

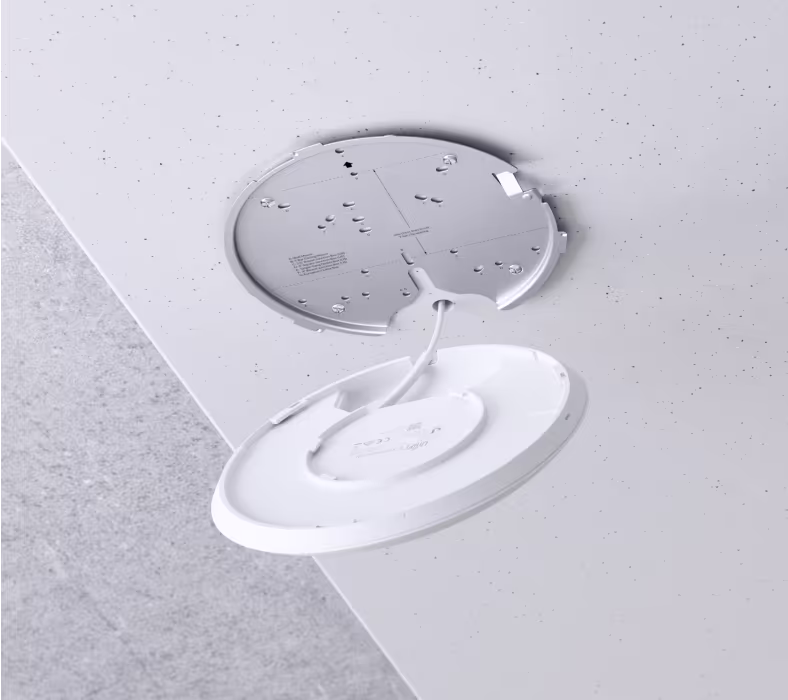

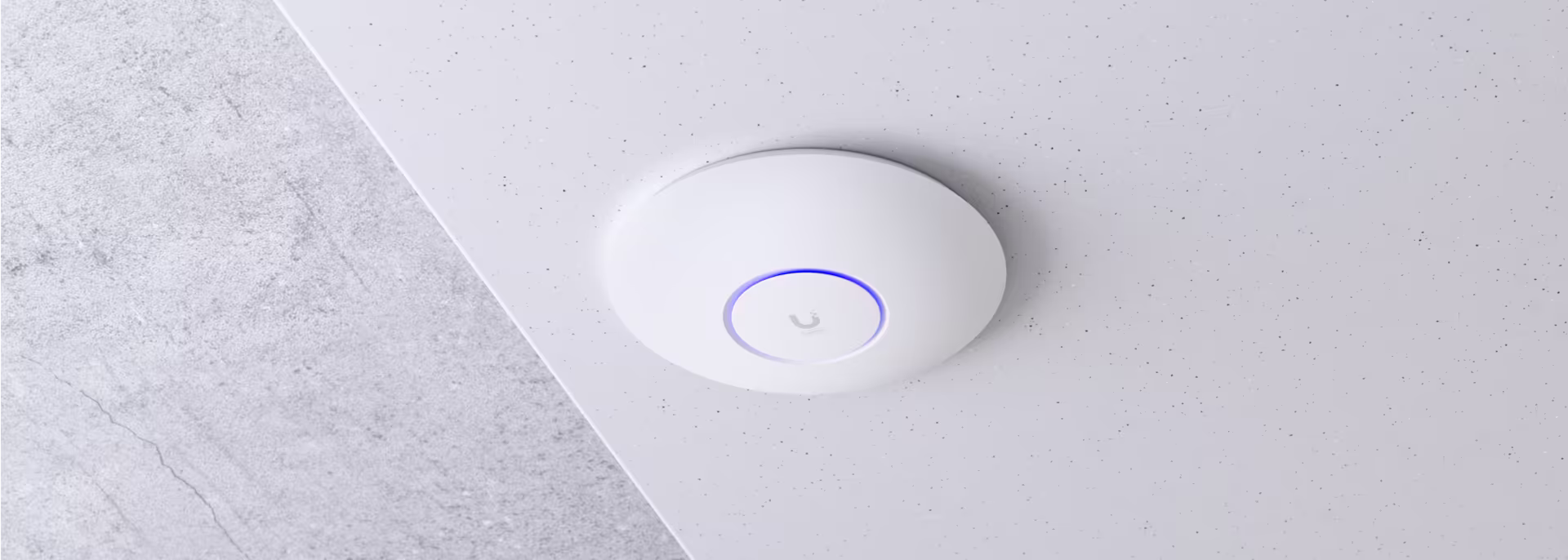

Celling Mounted
Wall Mounted
Technical Specifications
| Mechanical | |
|---|---|

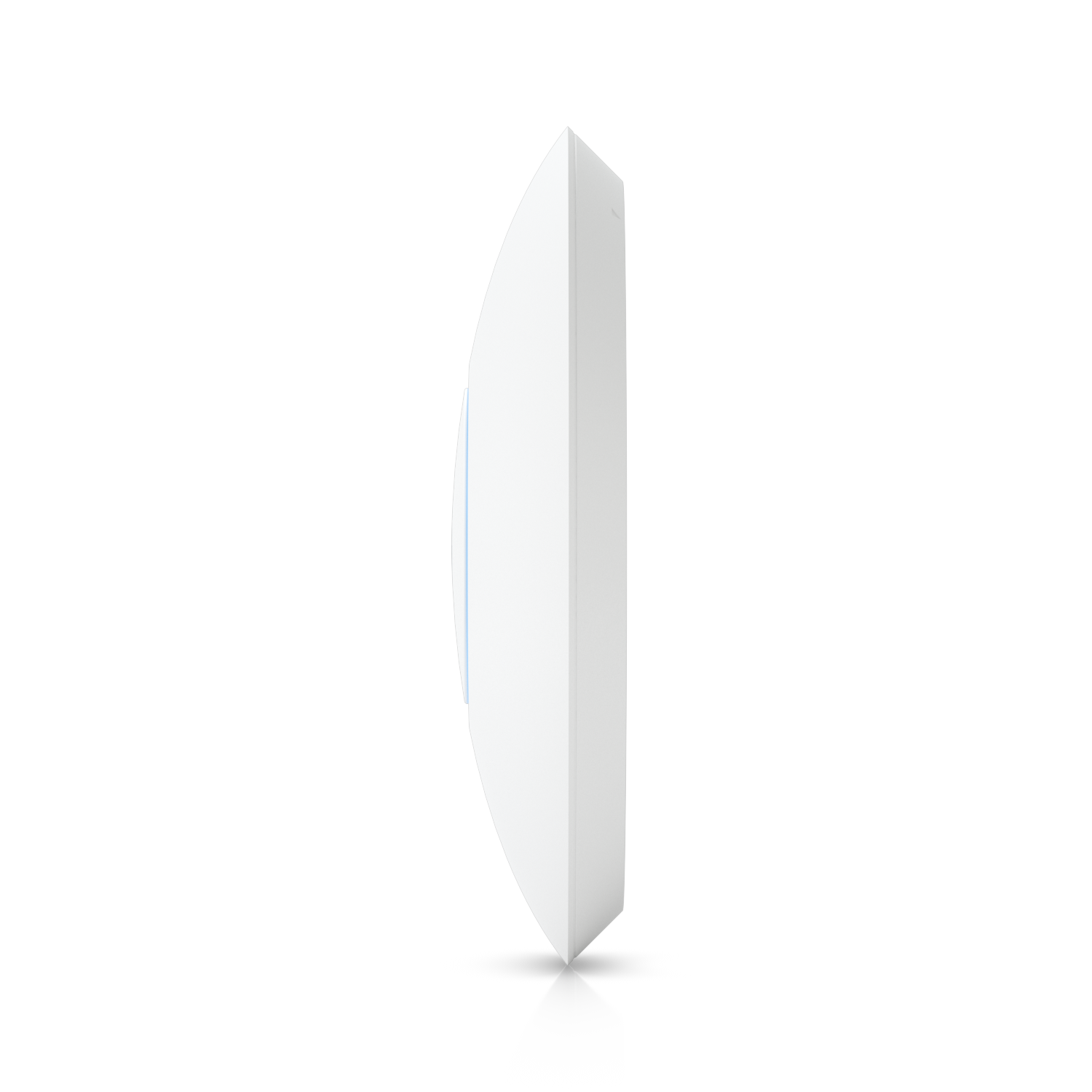

| Dimensions | Ø197 x 35 mm (Ø7.8 x 1.4") |
| Weight | Without mount: 580 g (1.3 lb) With mount: 720 g (1.6 lb) |
| Enclosure material | Polycarbonate |
| Mount material | Stainless steel (SUS304) |
| Weatherproofing | IP54 |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Management interface | Ethernet Bluetooth |
| Power method | PoE |
| Power supply | UniFi PoE switch PoE adapter (Not included) |
| Supported voltage range | 44—57V DC |
| Max. power consumption | 13W |
| Max. TX power 2.4 GHz 5 GHz 6 GHz | 22 dBm 26 dBm – |
| MIMO 2.4 GHz 5 GHz 6 GHz | 2 x 2 (UL MU-MIMO) 4 x 4 (DL/UL MU-MIMO) – |
| Max. data rate 2.4 GHz 5 GHz 6 GHz | 573.5 Mbps (BW40) 4.8 Gbps (BW160) – |
| Antenna gain 2.4 GHz 5 GHz 6 GHz | 4 dBi 6 dBi – |
| LEDs | White/blue |
| Button | Factory reset |

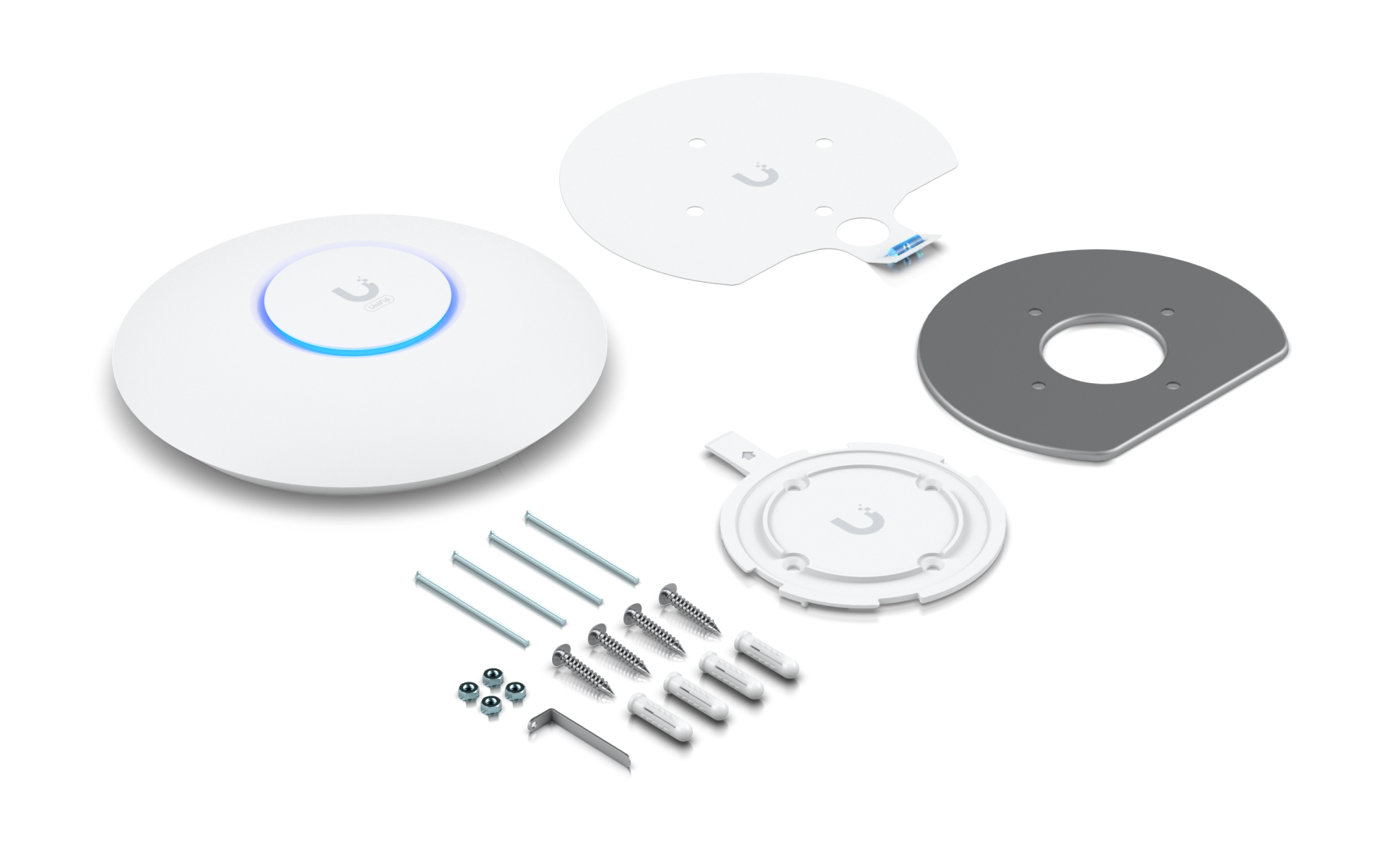

| Mounting | Wall, ceiling (Included) |
| Ambient operating temperature | -30 to 60° C (-22 to 140° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11a/b/g/n/ac/ax (WiFi 6) |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 350+ |
| Zero wait DFS | Yes* *Supported with upcoming firmware versions |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| 802.11ac | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| Application Requirements | |
| UniFi Network | Version 6.1.56 and later |
-
Data SheetDownload
