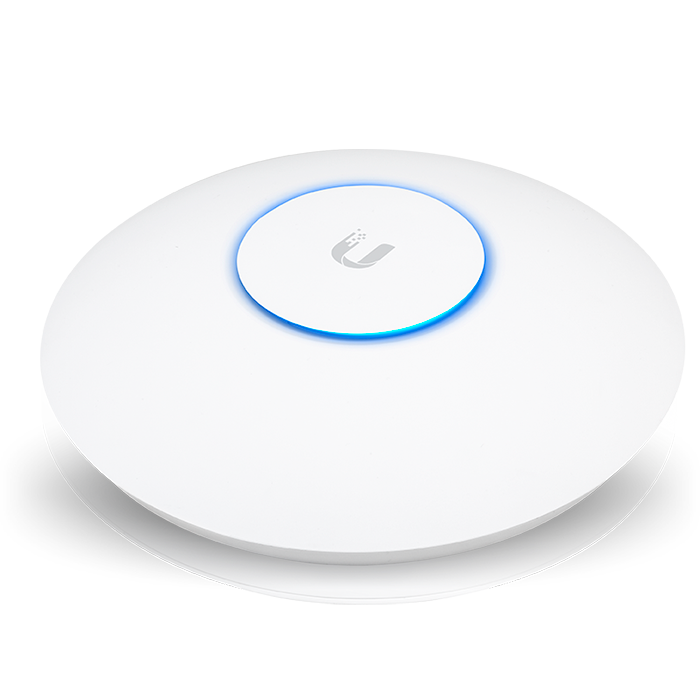

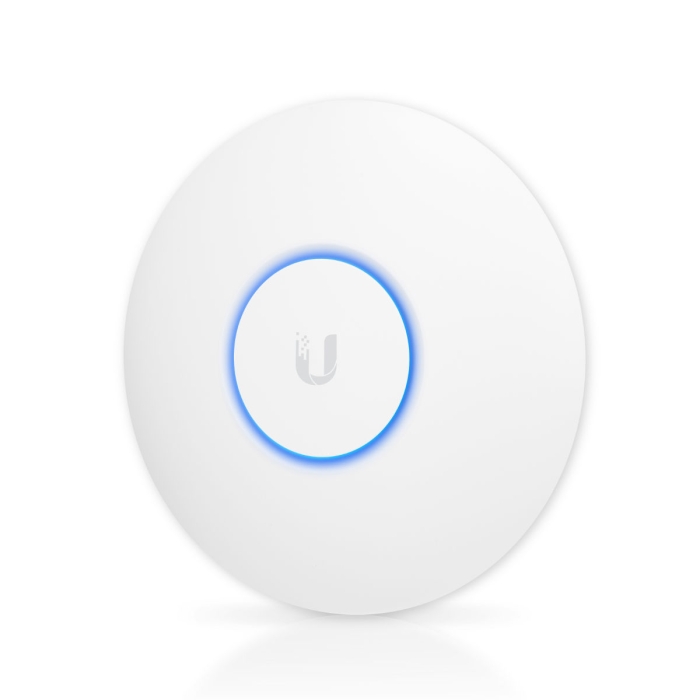

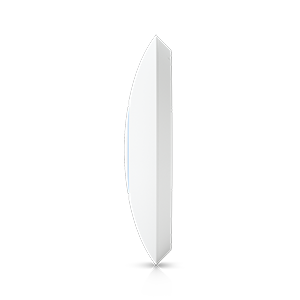

Ubiquiti U6-LR
Introducing the Ubiquiti UniFi U6-LR, a powerful
wireless Access Point leveraging advanced WiFi 6 technology to revolutionise
connectivity in enterprise environments. With 8 spatial streams and an extended
signal range, this ceiling-mounted AP offers unparalleled performance, covering
areas up to 185 m² (2,000 ft²) and supporting over 350 connected devices
simultaneously. Powered using PoE+ for seamless installation and featuring a
GbE uplink, the U6-LR ensures reliable and high-speed
connectivity for all your networking needs.
- AVAILABILITY: In Stock
- PRODUCT CODE: 100-10111
- CATEGORY: Networking
Wi-Fi 6 (IEEE 802.11ax)
Indoor
Celling Mounted
Wall Mounted
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | Ø220 x 48 mm (Ø8.7 x 1.9") |
| Weight | Without mount: 800 g (1.8 lb) With mount: 930 g (2.1 lb) |
| Enclosure material | Polycarbonate |
| Mount material | Stainless steel (SUS304) |
| Weatherproofing | IP54 |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Management interface | Ethernet Bluetooth |
| Power method | PoE+ Passive PoE, 48V |
| Power supply | UniFi PoE switch 48V, 0.5A PoE adapter (Not included) |
| Supported voltage range | 44—57V DC |
| Max. power consumption | 18.5W |
| Max. TX power 2.4 GHz 5 GHz 6 GHz | 26 dBm 26 dBm – |
| MIMO 2.4 GHz 5 GHz 6 GHz | 4 x 4 (SU-MIMO) 4 x 4 (DL/UL MU-MIMO) – |
| Throughput rate 2.4 GHz 5 GHz 6 GHz | 600 Mbps (BW40) 2.4 Gbps (BW160) – |
| Antenna gain 2.4 GHz 5 GHz 6 GHz | 4 dBi 5.5 dBi – |
| LEDs | White/blue |
| Button | Factory reset |
| Mounting | Wall, ceiling (Included) |
| Ambient operating temperature | -30 to 60° C (-22 to 140° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11a/b/g/n/ac/ax (WiFi 6) |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3 |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 350+ |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| 802.11ac | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 160) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 160) |
| Application Requirements | |
| UniFi Network | Version 6.0.34 and later |
-
Data SheetDownload
