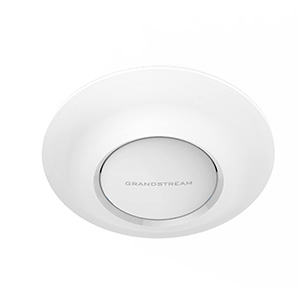

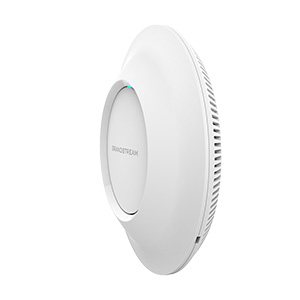

Grandstream GWN7605 MU-MIMO 2x2:2, 802.11ac Wave-2 Wi-Fi 5 Access Point
The Grandstream GWN7605 is a compact, cost-effective 802.11ac Wave-2 Wi-Fi access point designed for small to medium-sized deployments. It features dual-band 2x2:2 MU-MIMO technology with beamforming and an advanced antenna design, providing up to 1.27Gbps aggregate wireless throughput and extended coverage. With two Gigabit LAN ports, it's ideal for businesses needing reliable, high-speed Wi-Fi with moderate user density.
- AVAILABILITY: In Stock
- PRODUCT CODE: 100-10281
- CATEGORY: Networking
Indoor
Celling Mounted
Wall Mounted
Technical Specifications
- Wi-Fi Standards: 802.11a/b/g/n/ac (Wave-2)
- Frequency Bands: 2.4 GHz and 5 GHz
- Aggregate Wireless Throughput: 1.27 Gbps
- MIMO: 2x2:2 MU-MIMO (both bands)
- Antennas: 2 dual-band internal antennas

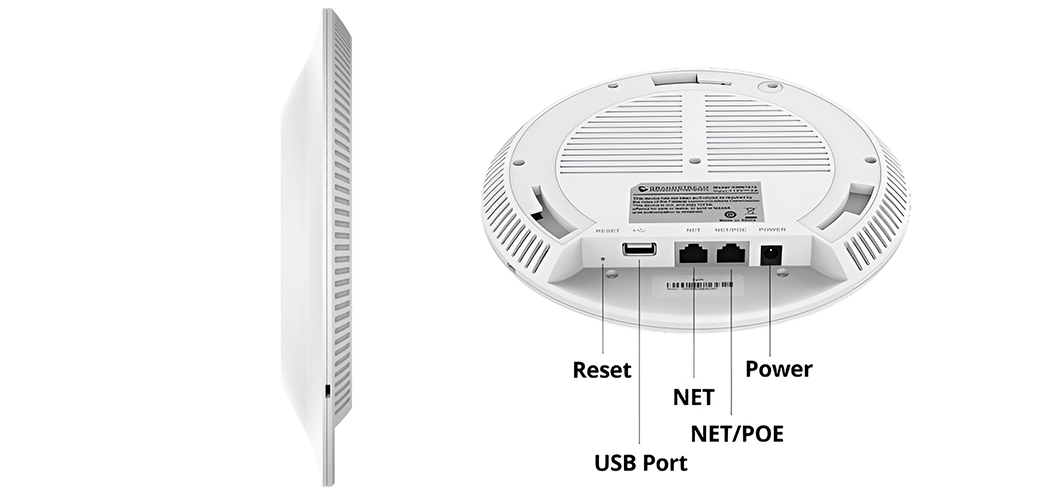

- Ethernet Ports: 2 x Gigabit Ethernet (10/100/1000 Mbps)
- PoE: Supports self-power adaptation upon auto-detection of PoE/PoE+
- Coverage Range: Up to 165 meters
- Client Capacity: Supports 100+ concurrent Wi-Fi client devices
- Management: Embedded controller (up to 50 local GWN series APs), GWN.Cloud (unlimited AP management), GWN.Manager (premise-based software controller)
- Security: Anti-hacking secure boot, digital signatures, unique security certificate/random default password per device
- QoS: Advanced Quality of Service for real-time applications
- Dimensions: 180.4 x 180.4 x 40.8 mm
- Weight: 0.38 kg
-
Data SheetDownload
