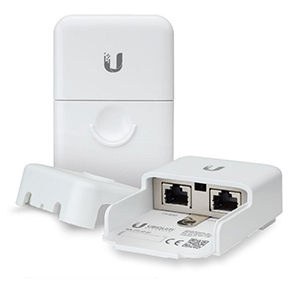

Ubiquiti ETH-SP-G2

Rs. 8,850.00

ETH-SP-G2 is the next generation Ethernet Surge Protector from Ubiquiti. It is a cost-effective solution for protecting outdoor Ethernet devices from damaging electrostatic discharge and surges. The ETH-SP-G2 is engineered to protect PoE or non-PoE devices with connection speeds of up to 1 Gbps. Two passive, surge-protected RJ45 connections provide maximum equipment compatibility

AVAILABILITY: In Stock
PRODUCT CODE: 100-10077
CATEGORY: Networking

Add to Cart

Technical Specifications

Mechanical
Dimensions	91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3")
Weight	80 g (2.8 oz)
Weatherproofing	IPX5
Hardware
Networking interface	(2) RJ45 female connectors
ESD/EMP protection	Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs
DC spark-over voltage	90V @ 100V/s
Max. impulse spark-over voltage	700V @ 1kV/µs
Discharge Current	10kA+
Max. insulation resistance	1G ohm @ 50V
Max. capacitance	1.0 pF @ 1 MHz
Data line protection	Up to 2.5 Gbps
PoE support	Yes
Shock and vibration certification	ETSI300-019-1.4 Standard
Ambient operating temperature	-30 to 65° C (-22 to 149° F)
Ambient operating humidity	10 to 90% noncondensing
