Ubiquiti UCG-Ultra Gateway

Ubiquiti UniFi Cloud Gateway Ultra - Technical Specification

Mechanical

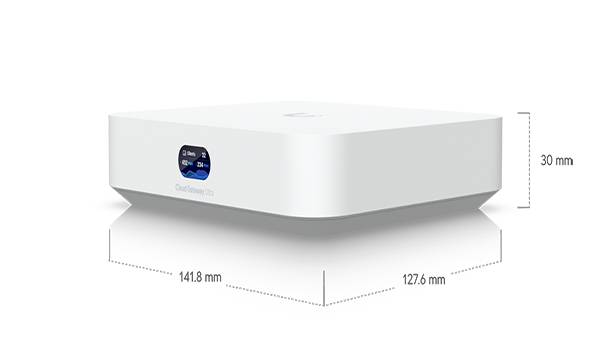

• Dimensions: 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")
• Weight: 520 g (1.1 lb)
• Enclosure material: Polycarbonate

Hardware

• Management interface: Ethernet
• Bluetooth
• Networking interface:

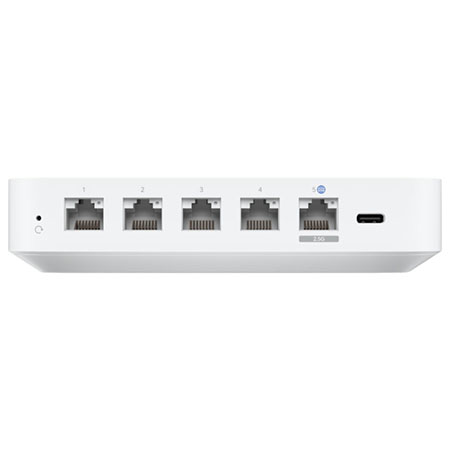

  • LAN: (4) GbE RJ45 ports
  • WAN: (1) 1/2.5 GbE RJ45 port
• Power method: USB type C (5V DC/3A)
• Supported voltage range: 100–240V AC
• Max. power consumption: 6.2W

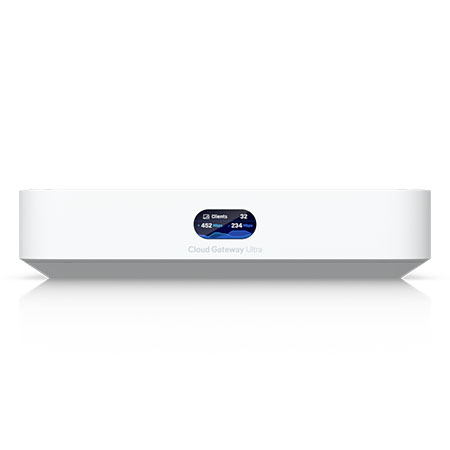

• LCM display: 0.96" status display
• Button: Factory reset
• Operating temperature: -10 to 40° C (14 to 104° F)
• Operating humidity: 5 to 95% noncondensing
• Certifications: CE, FCC, IC

Gateway Features

• Performance:
  • Redundant WAN with failover and load balancing
  • WiFi QoS with UniFi APs
  • Application, domain, and country-based QoS
  • Application and device type identification
  • Additional internet failover with LTE Backup
  • Internet quality and outage reporting
• Next-generation security:
  • Application-aware firewall rules
  • Signature-based IPS/IDS threat detection
  • Content, country, domain, and ad filtering
  • VLAN/subnet-based traffic segmentation
  • Full stateful firewall
• Advanced networking:
  • License-free SD-WAN
  • WireGuard, L2TP and OpenVPN server
  • OpenVPN client
  • OpenVPN and IPsec site-to-site VPN
  • One-click Teleport and Identity VPN
  • Policy-based WAN and VPN routing
  • DHCP relay
  • Customizable DHCP server
  • IGMP proxy
  • IPv6 ISP support

LEDs

• Ethernet: Green (link/activity)

Application Requirements

• Mobile app:
  • UniFi iOS™: Version 10.12.0 and later
  • UniFi Android™: Version 10.11.2 and later
