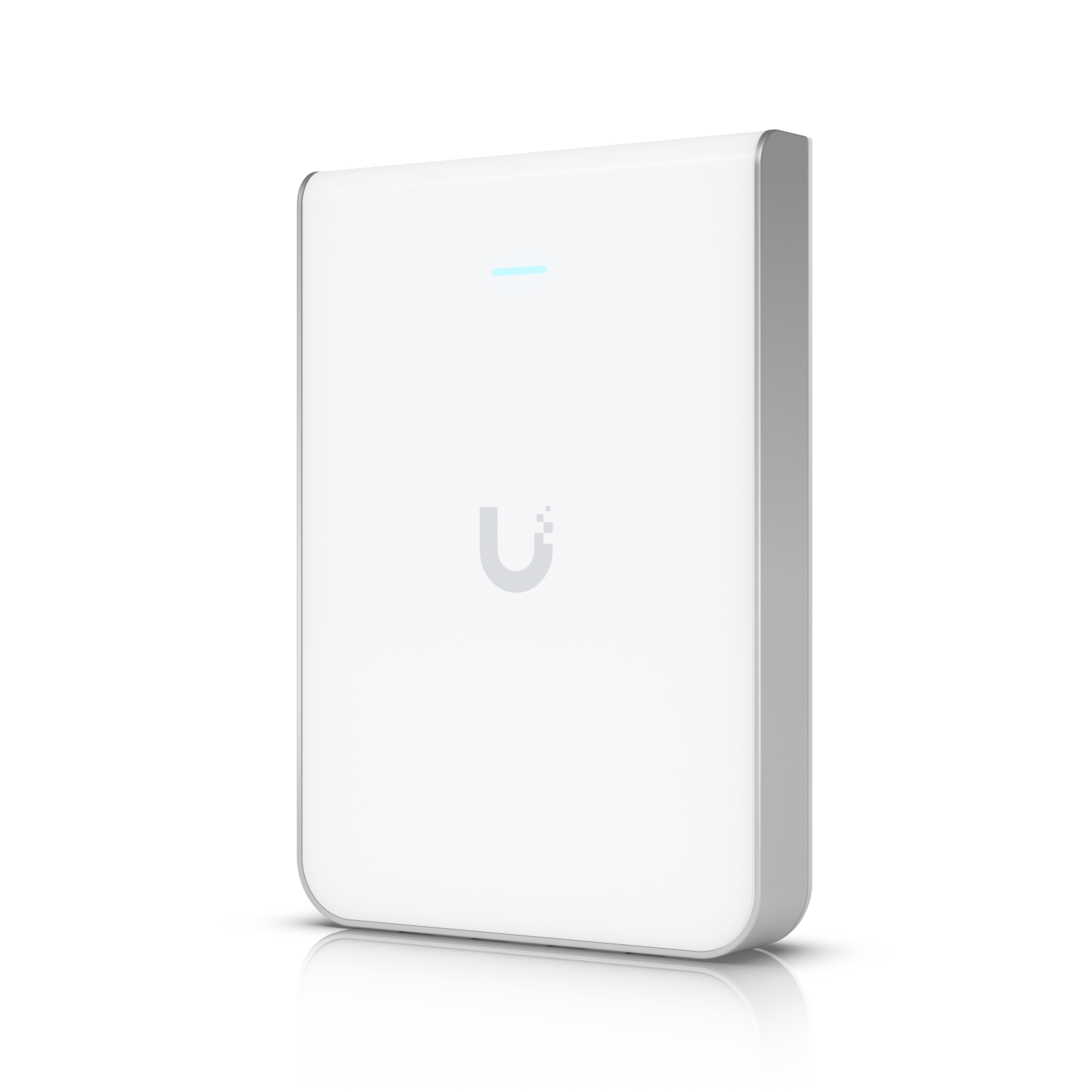

Ubiquiti UAP-IW-HD
Ubiquiti In-Wall HD
Wall-mounted WiFi 5 AP with 6 spatial streams and a built-in 4-port switch ideal for single-room coverage in hospitality environments.
- AVAILABILITY: In Stock
- PRODUCT CODE: 100-10107
- CATEGORY: Networking
Wi-Fi 5 (IEEE 802.11ac)
Indoor
Celling Mounted
Wall Mounted
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 139.7 x 86.7 x 25.8 mm (5.5 x 3.4 x 1") |
| Weight | 210 g (7.4 oz) |
| Hardware | |

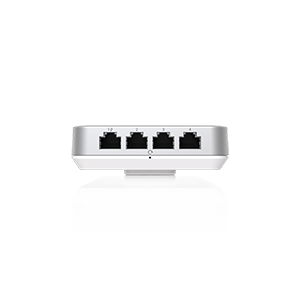

| Networking interface | (5) GbE RJ45 ports |
| Management interface | Ethernet |

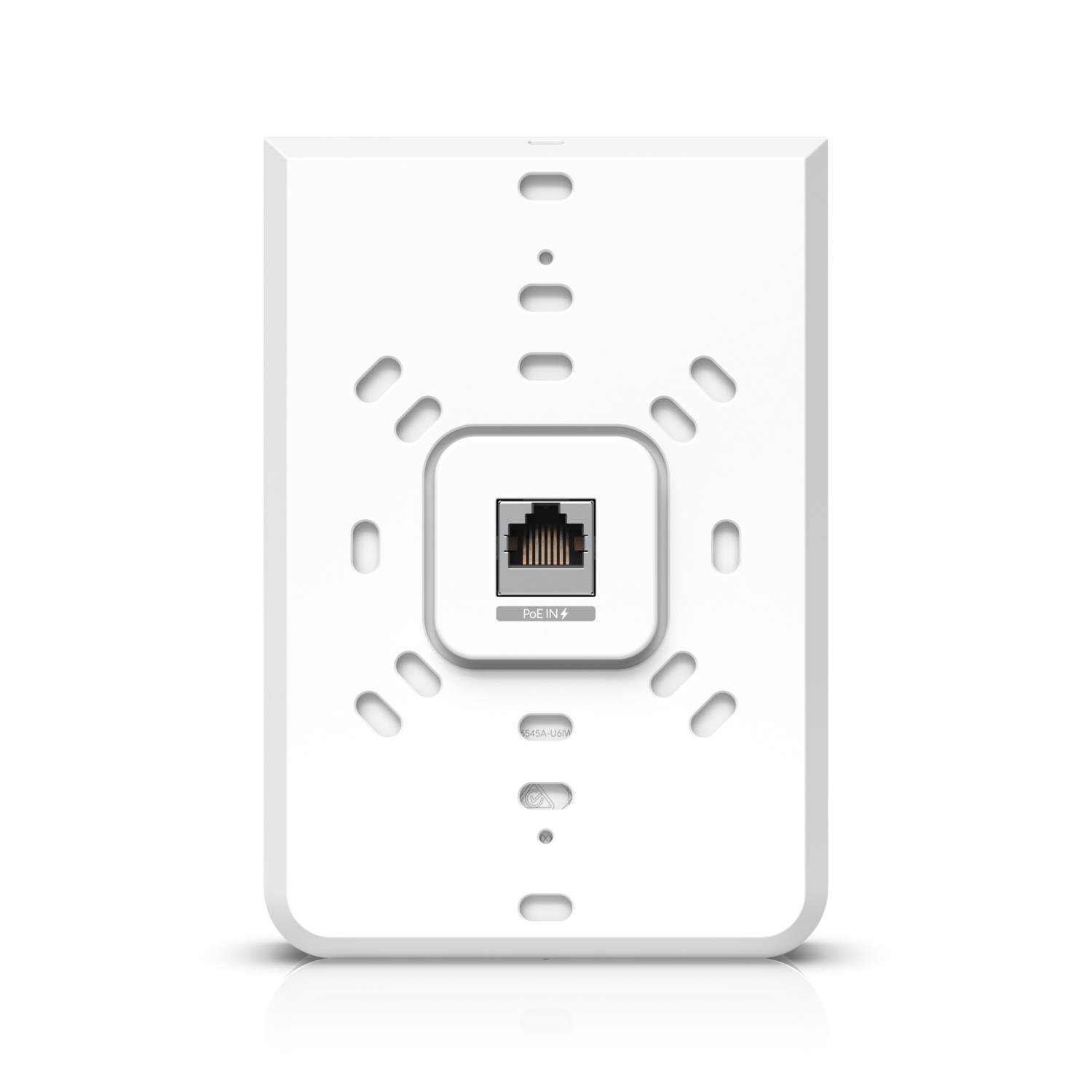

| PoE interface | (1) PoE/PoE+ in (1) PoE out |
| Power method | PoE PoE+* *Required for PoE passthrough. |
| Power supply | UniFi PoE switch |
| PoE out | 48V pass-through (Pins 1, 2+; 3, 6-) |
| Supported voltage range | 44—57V DC |
| Max. power consumption | 11W (Excluding PoE output) |
| Max. PoE wattage per port by PSE | 23W* *Requires PoE switch. |
| Max. TX power 2.4 GHz 5 GHz | 23 dBm 26 dBm |
| MIMO 2.4 GHz 5 GHz | 2 x 2 4 x 4 |
| Throughput rate 2.4 GHz 5 GHz | 300 Mbps 1733 Mbps |
| Antenna gain 2.4 GHz 5 GHz | 1.8 dBi 6 dBi |
| Button | Factory reset |

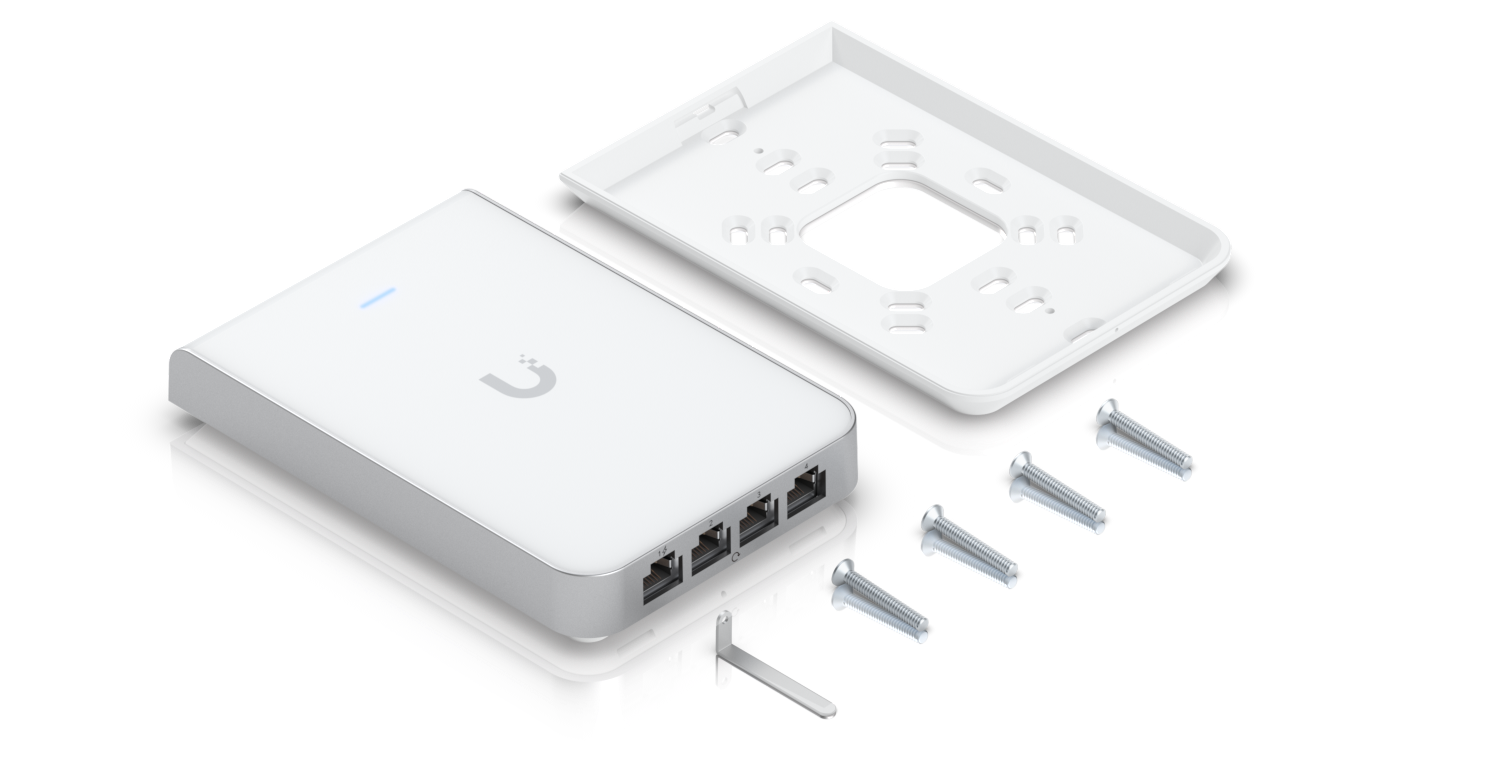

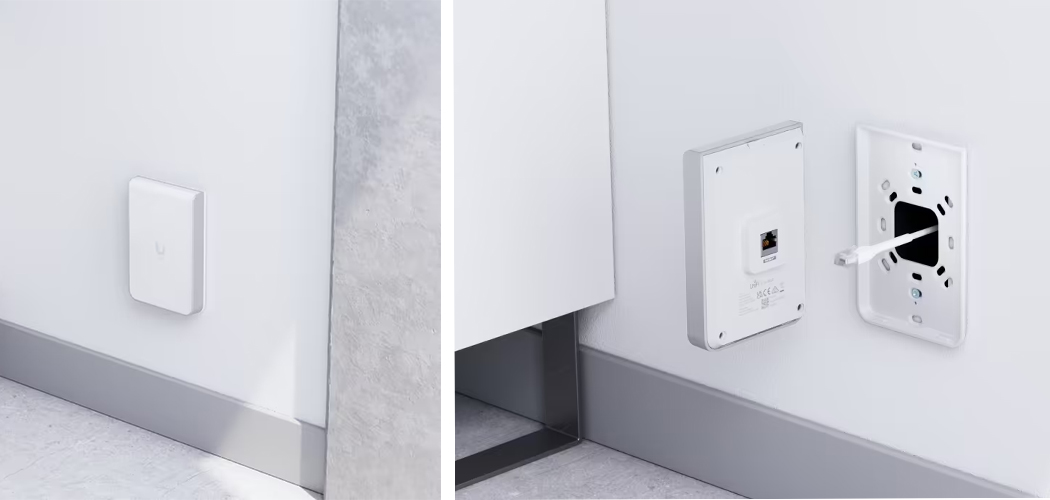

| Mounting | 1-Gang electrical wall box (Optional) |
| Ambient operating temperature | -10 to 60° C (14 to 140° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, cULus |
| Software | |
| WiFi standards | 802.11 a/b/g/n/r/k/v/ac/ac-wave2 |
| Wireless security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF |
| BSSID | Up to 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Power save | Supported |
| Beam-forming | Supported |
| WMM | Voice, video, best effort, and background |
| Concurrent clients | 200+ |
| Supported Data Rates (Mbps) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 -MCS15, HT 20/40) |
| 802.11ac | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80) 58 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 160) |
-
Data SheetDownload
