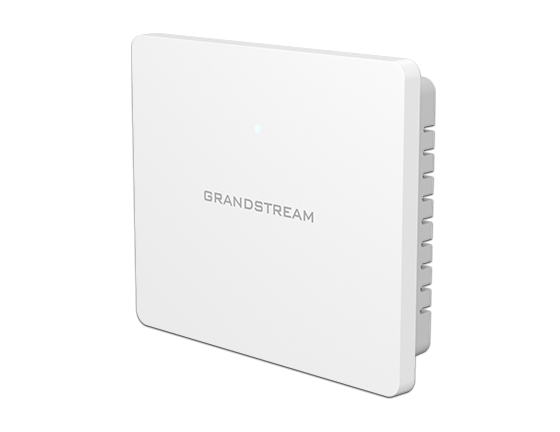

Grandstream GWN7603 MU-MIMO 2x2:2, 802.11ac Wave-2 Wi-Fi 5 Access Point
The GWN7603 is a compact Wi-Fi
access point designed for small businesses, hotels, and home offices.

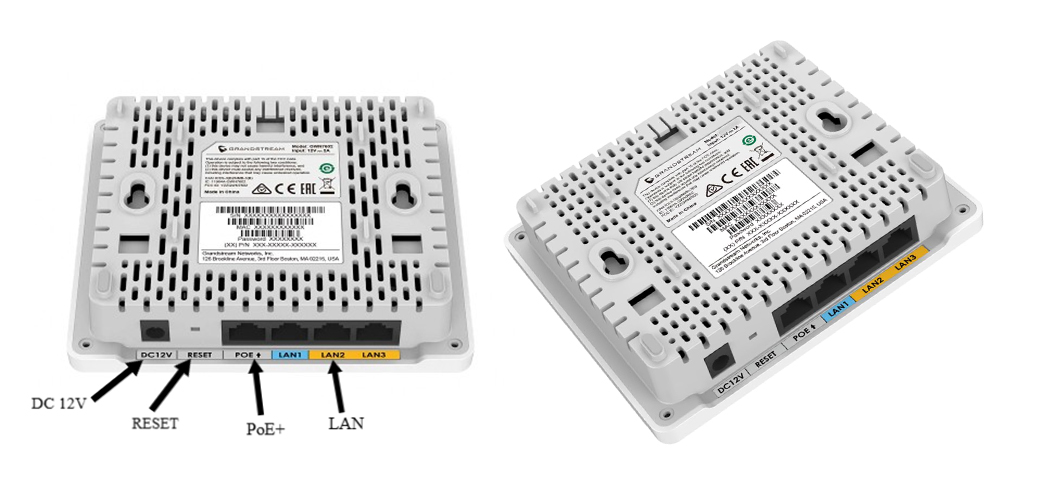

It provides versatility through four Gigabit ethernet ports, including one
uplink port that can receive PoE/ PoE+ to power the access
point, and two ports with PSE that can provide PoE and a network connection to
other devices. The GWN7603 offers dual-band 2×2:2 MU-MIMO technology
and a sophisticated antenna design to support 100+ concurrent clients and up to
100-meter coverage range. This Wi-Fi access point can be easily installed and
managed using GWN.Cloud (now integrated with GDMS) and GWN Manager, Grandstream’s
cloud and on-premise network management platforms. With support for advanced
QoS, low-latency real-time applications, mesh networks, captive portals,
1.27Gbps wireless throughput, and four Gigabit network ports, the GWN7603 is
the ideal Wi-Fi access point for small-to-medium sized deployments that require
flexibility.
- AVAILABILITY: Coming Soon
- PRODUCT CODE: NA
- CATEGORY: Networking
Wi-Fi 5 (IEEE 802.11ac)
Technical Specifications
- Wi-Fi Standard: 802.11ac (Wi-Fi 5) Wave 2.
- Frequency Bands: Dual-band (2.4 GHz and 5 GHz).
- Wireless Throughput: Up to 1.27 Gbps aggregate throughput.
- Concurrent Clients: Supports up to 100+ clients.
- Coverage Range: Up to 100 meters.
- Antenna: 2x2:2 MU-MIMO.

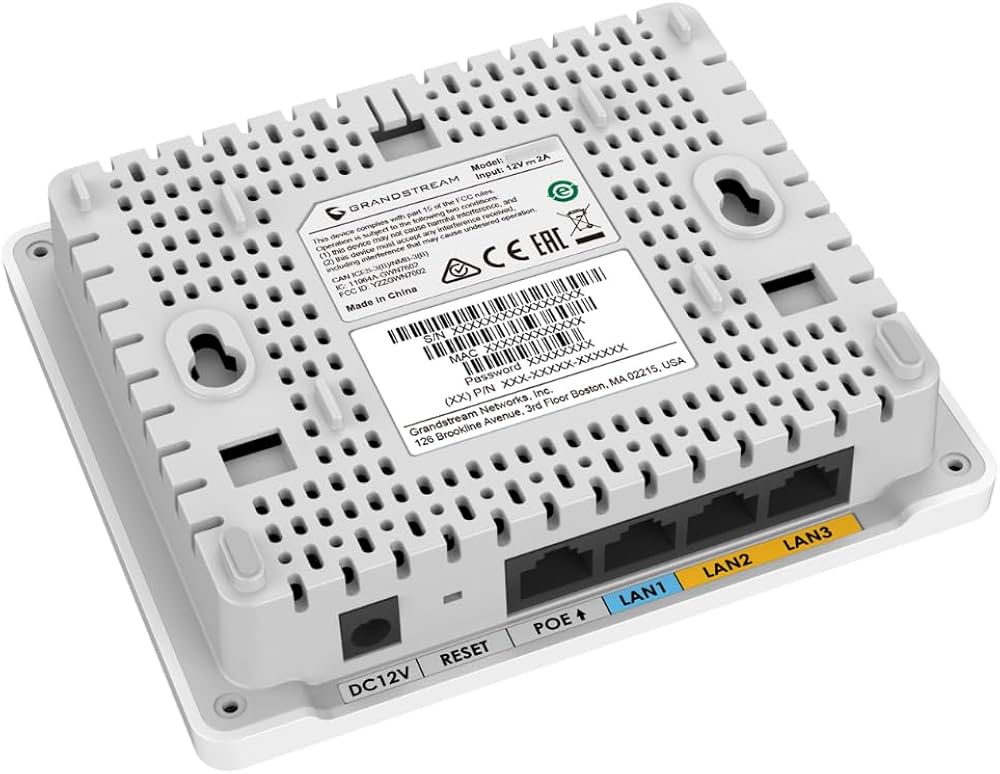

- Ethernet Ports: 4 Gigabit Ethernet ports (1 uplink with PoE/PoE+ and 2 PoE output).
- Management: GWN.Cloud (integrated with GDMS), GWN Manager, or embedded controller.
- Security: Anti-hacking secure boot, digital signatures, unique security certificate/random default password.
- QoS: Advanced Quality of Service for low-latency applications.

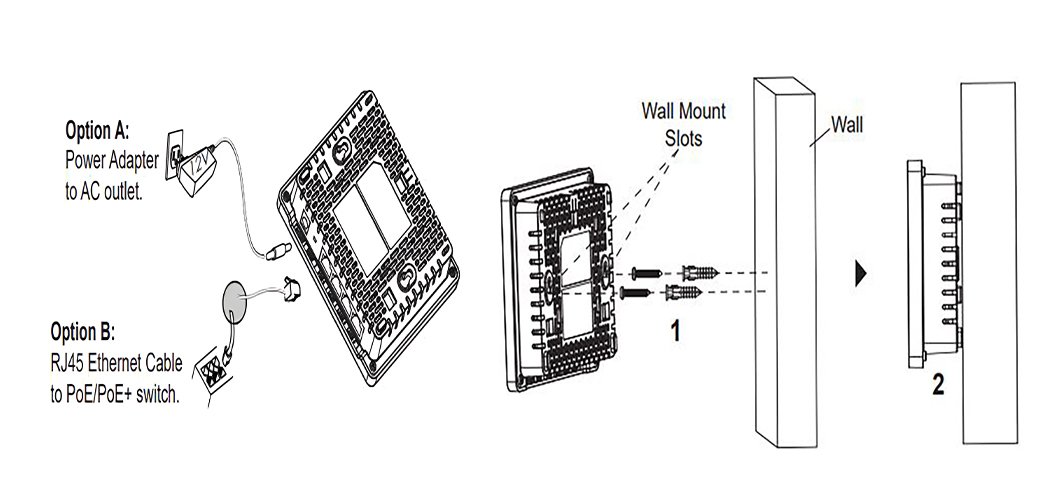

- Mounting: Wall plate.
-
Data SheetDownload
