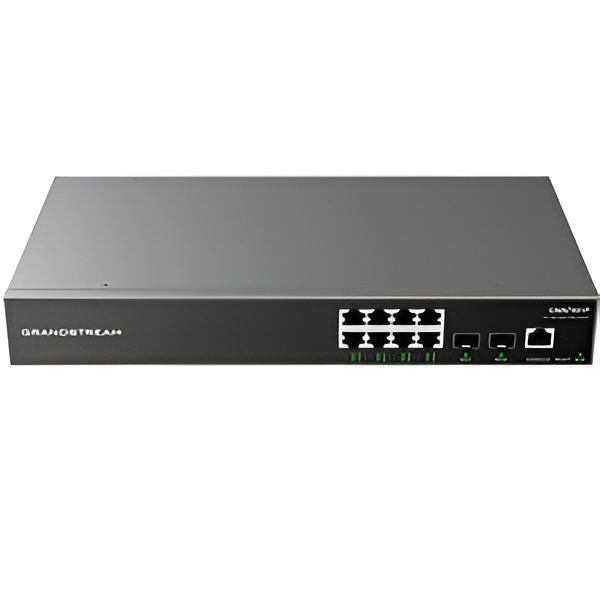

Grandstream GWN7801P Enterprise Layer 2+ Managed 120W PoE+ Network Switch with 8 x 1GigE PoE+, 2 x SFP Ports
GWN7801P is Layer 2+ managed network switches
that allows small-to-medium enterprises to build scalable, secure, high
performance, and smart business networks that is fully manageable. It supports
8 Gigabit Ethernet ports and 2 Gigabit SFP ports, deployment in IPv6 and IPv4
networks, provides smart dynamic PoE output to power IP phones, IP cameras,
Wi-Fi access points and other PoE endpoints.
- AVAILABILITY: Pre Order
- PRODUCT CODE: NA
- CATEGORY: Networking
8 / 10 - Ports
Manageable
PoE
SFP Ports / Combo Ports
Layer 2
Technical Specifications
| Details | |
|---|---|
| Manufacturer's Code | GWN7801P |
| Network Protocol | IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s |
| Gigabit Ethernet Ports | 8 |
| Gigabit SFP Ports | 2 |
| Console | 1 |
| # of PoE Ports | 8 |
| Integrated Power Supply | 150W |
| Max Output Power per PoE Port | 30W |
| Max Total PoE Output Power | 150W |
| PoE Standards | IEEE 802.3af/at |
| Auxiliary Ports | 1x Reset Pinhole |
| Forwarding Mode | Store-and-forward |
| Total non-blocking throughput | 10Gbps |
| Switching Capability | 20Gbps |
| Forwarding Rate | 14.88M packets per second |
| Packet Buffer | 4.1MB |
| Switching | 8K static, dynamic and filtering MAC addresses; 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN; VLAN virtual interface; GVRP (pending); 8 link aggregation groups; Spanning tree, 64 instances for STP/RTSP/MSTP |
| Multicast | IGMP Snooping, MLD Snooping, MVR |
| QoS/ACL | Auto detection and prioritization of voice/video/RTP/SIP/other latency-sensitive packets (pending); Port priority; Priority mapping; Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ; Traffic shaping; Rate limit; 1.5K ACL for Ethernet, IPv4 and IPv6 |
| DHCP | DHCP server, DHCP relay, Option 82, 60,160 and 43 |
| Maintenance | CPU and memory monitoring, SNMP, RMON, LLDP&LLDP-MED, backup and restore, syslog, alert, diagnostics including Ping, Traceroute, port mirroring, UDLD(TBD) and copper test |
| Security | User hierarchical management and password protection, HTTPS, SSH, Telnet; 802.1X authentication; AAA authentication including RADIUS, TACACS+; Storm control; Port isolation, port security, sticky MAC; Filtering MAC address; IP source guard, DoS attack prevention, ARP inspection; DHCP Snooping; Loop protection including BPDU protection, root protection and loopback protection; Kensington Security Slot (Kensington Lock) support |
| Mounting | Desktop/Wall/Rack-Mount |
| LEDs | 1x tri-color LED for device tracking and status indication, 10x green-color LEDs for data ports, 8x yellow-color LEDs for PoE ports |
| Fan | None |
| Environmental | Operation: 0°Cto 45°C, humidity 10-90% RH(Non-condensing) |
| Dimensions | 330mm(L)*175mm(W)*44(H) |
-
Data SheetDownload
