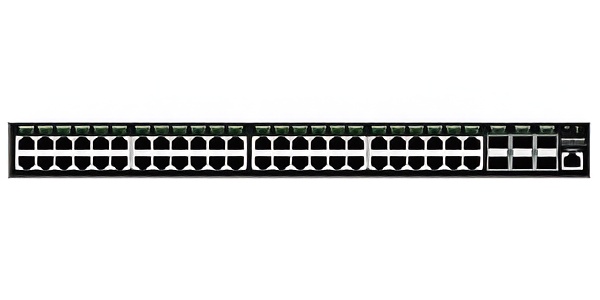

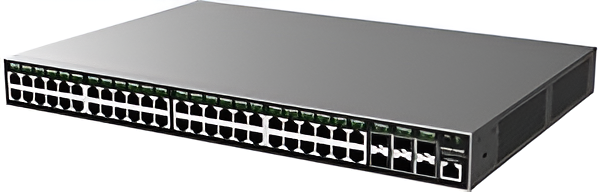

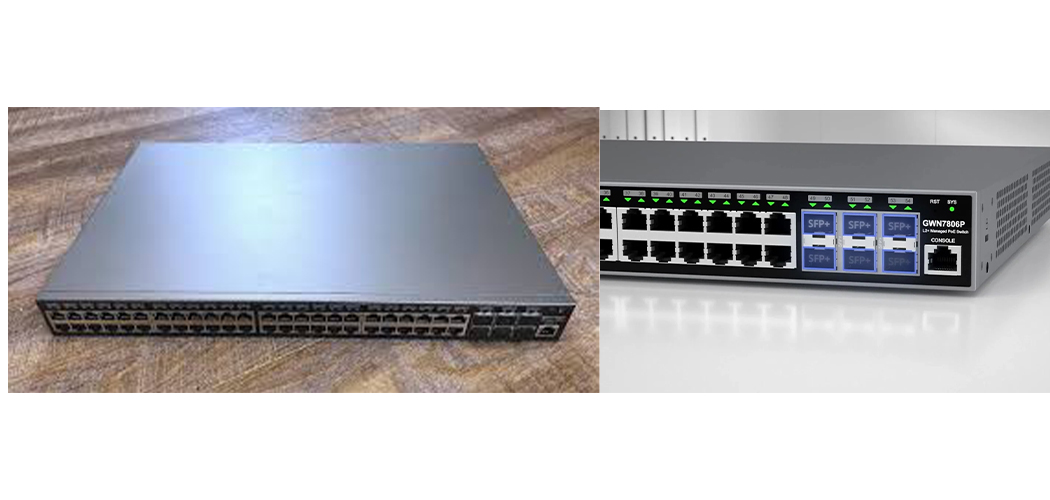

Grandstream GWN7806P Enterprise Layer 2+ Managed 400W PoE+ Network Switch with 48 x 1GigE PoE+, 6 x 10Gigabit SFP+ Ports
The GWN7806(P) is a high-performance layer 2+ managed
network switch with 48 ports that allows small-to-medium enterprises to build
scalable, secure, and smart business networks that are fully manageable
- 48
Gigabit Ethernet ports and 6 10Gigabit SFP+ ports
- Smart
power control to support dynamic PoE/PoE+ power allocation per port for
the PoE models
- Supports
deployment in IPv6 and IPv4 networks
- Reliability
features including fault detection, device protection, dual boot, dual
system file redundancy, link aggregation, storm control, and more
- ARP
Inspection, IP Source Guard, DoS protection, port security & DHCP
snooping
- Embedded
controller to manage switch, GWN Series Routers, GWN.Cloud and GWN
Manager; Grandstream’s cloud and on-premise Wi-Fi management platform
- Built-in
QoS allows for prioritization of network traffic
- Supports
stacking for easy management of up to 16 switches in one interface while
creating redundant backup between multiple devices
- AVAILABILITY: Pre Order
- PRODUCT CODE: NA
- CATEGORY: Networking
48 / 52 - Ports
Manageable
PoE
SFP Ports / Combo Ports
Layer 2
Technical Specifications
| Details | |
|---|---|
| Manufacturer's Code | GWN7806P |
| Gigabit Ports | 48 |
| SFP+ Ports | 6; Note: Support DAC cable, and must be ≤ 5m |
| Maximum no. of Supported Modules | SM-10G: 6, MM-10G: 6, RJ45-10G: 3, Note: RJ45-10G modules must be interval inserted |
| Network Protocol | IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x |
| PoE Ports | 48 |
| Integrated Power Supply | 470W |
| Maximum Output Power Per PoE Port | 30W |
| Max Total PoE Output Power | 400W |
| PoE Standards | IEEE 802.3af/at |
| Auxiliary Ports | 1x Reset Pinhole |
| Forwarding Mode | Store-and-forward |
| Total non-blocking throughput | 108Gbps |
| Switching Capability | 216Gbps |
| Forwarding Rate | 160.704Mpps |
| Packet Buffer | 16Mb |
| Mounting | Desktop, Rack-Mount(rack-mounting kits included) |
| LEDs | 1x tri-color LED for device tracking and status indication, 54x green-color LEDs for data transferring, 48x yellow-color LEDs for PoE powered |
| Fans | 3 |
| Environmental | Operation: 0°C to 45°C, humidity: 10% to 90% RH(Non-condensing), Storage: -10°C to 60°C, humidity: 10% to 90% RH(Non-condensing) |
| Dimensions | 440mm(L) x 301mm(W) x 44mm(H) |
| Unit Weight | 5.1Kg |
| Compliance | FCC, CE, RCM, IC, UKCA |
-
Data SheetDownload

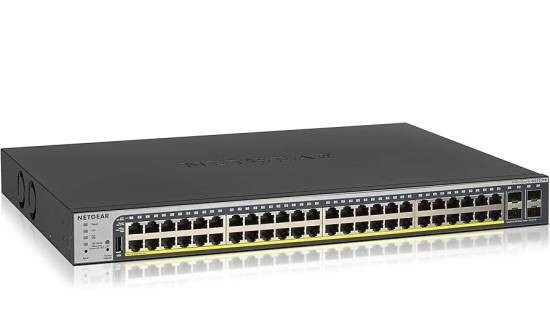

Netgear GS752TP 48-Port Gigabit Ethernet PoE+ (380W) Smart Switch with 4 SFP Ports
48-Port Gigabit Ethernet PoE+ (380W) Smart Switch with 4 SFP Ports
Netgear GS752TPP 48-Port Gigabit Ethernet PoE+ (760W) Smart Switch with 4 SFP Ports
48-Port Gigabit Ethernet PoE+ (760W) Smart Switch with 4 SFP Ports
Netgear GS748T 48-Port Gigabit Ethernet Smart Switch With 2 Dedicated SFP Ports + 2 Combo SFP Ports
48-Port Gigabit Ethernet Smart Switch With 2 Dedicated SFP Ports + 2 Combo SFP Ports

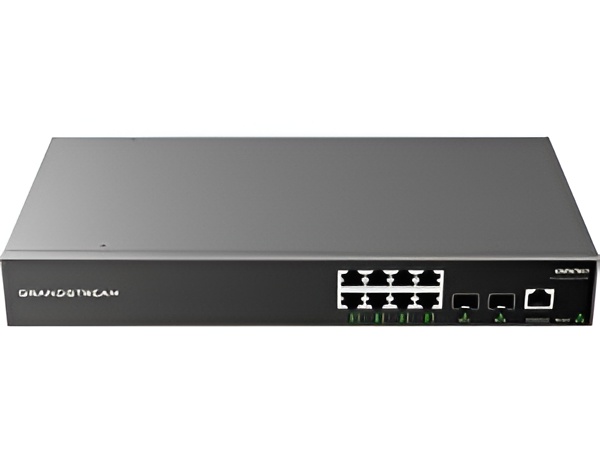

Grandstream GWN7801 Enterprise Layer 2+ Managed Network Switch with 8 x 1GigE, 2 x SFP Ports
Enterprise Layer 2+ Managed Network Switch with 8 x 1GigE, 2 x SFP Ports
TP-LINK TL-SG1218MPE 18-Port Gigabit Easy Smart Switch with 16-Port PoE+
18-Port Gigabit Easy Smart Switch with 16-Port PoE+
TP-LINK TL-SG2428P Omada 28-Port Gigabit Smart Switch with 24-Port PoE+
Omada 28-Port Gigabit Smart Switch with 24-Port PoE+
Grandstream GWN7803P Enterprise Layer 2+ Managed 370W PoE+ Network Switch with 24 x 1GigE PoE+, 4 x SFP Ports
Enterprise Layer 2+ Managed 370W PoE+ Network Switch with 24 x 1GigE PoE+, 4 x SFP Ports

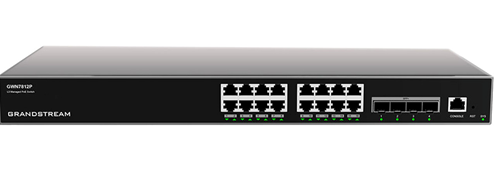

Grandstream GWN7812P Enterprise Layer 3 Managed 240W PoE+ Network Switch with 16 x GigE PoE+, 4 x 10Gigabit SFP+ Ports
Enterprise Layer 3 Managed 240W PoE+ Network Switch with 16 x GigE PoE+, 4 x 10Gigabit SFP+ Ports

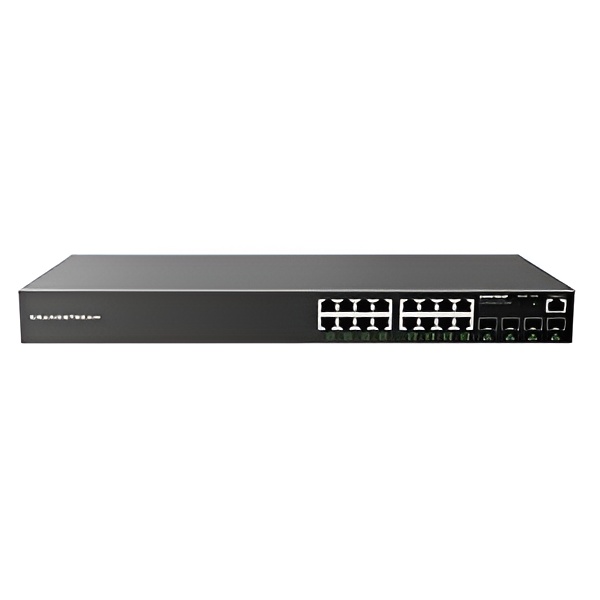

Grandstream GWN7802P Enterprise Layer 2+ Managed 240W PoE+ Network Switch with 16 x 1GigE PoE+, 4 x SFP Ports
