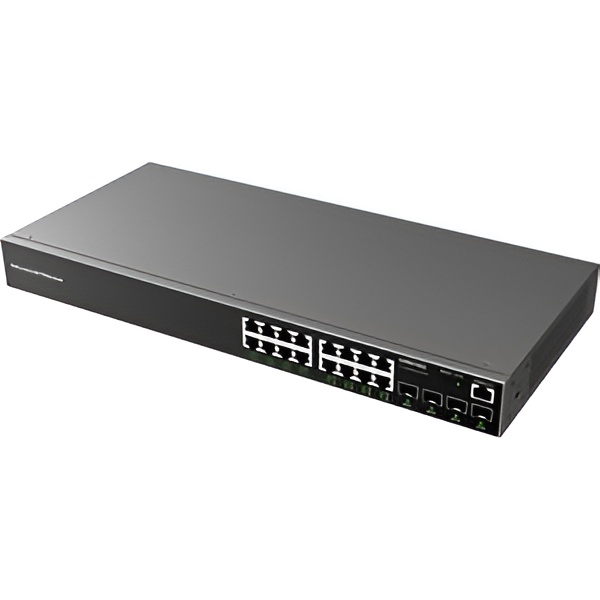

Grandstream GWN7802P Enterprise Layer 2+ Managed 240W PoE+ Network Switch with 16 x 1GigE PoE+, 4 x SFP Ports
The Grandstream GWN7802P is an enterprise-grade Layer 2+ managed PoE switch designed for small-to-medium businesses. It features advanced VLAN, QoS, and IGMP Snooping for optimized traffic management, plus strong security functions. With smart dynamic PoE output, it powers devices like IP phones, cameras, and Wi-Fi access points. It can be managed via a local web UI, GWN.Cloud, or GWN Manager, offering flexible and scalable network control.
- AVAILABILITY: Pre Order
- PRODUCT CODE: NA
- CATEGORY: Networking
Manageable
PoE

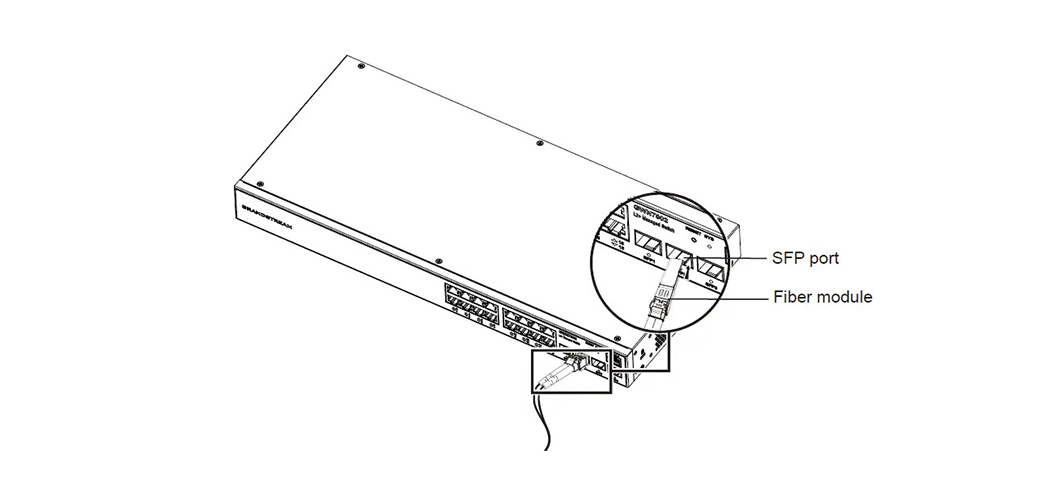

SFP Ports / Combo Ports
16 / 18 - Ports
Layer 2
Technical Specifications
| Details | |
|---|---|
| Manufacturer's Code | GWN7802P |
| Network Protocol | IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s |
| Gigabit Ethernet Ports | 16 |
| Gigabit SFP Ports | 4 |
| Console | 1 |
| # of PoE Ports | 16 |
| Integrated Power Supply | 270W |
| Max Output Power per PoE Port | 30W |
| Max Total PoE Output Power | 240W |
| PoE Standards | IEEE 802.3af/at |
| Auxiliary Ports | 1x Reset Pinhole |
| Forwarding Mode | Store-and-forward |
| Total non-blocking throughput | 20Gbps |
| Switching Capability | 40Gbps |
| Forwarding Rate | 29.76M packets per second |
| Packet Buffer | 4.1MB |
| Switching | 8K static, dynamic and filtering MAC addresses; 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN; VLAN virtual interface; GVRP (pending); 8 link aggregation groups; Spanning tree, 64 instances for STP/RTSP/MSTP |
| Multicast | IGMP Snooping, MLD Snooping, MVR |
| QoS/ACL | Auto detection and prioritization of voice/video/RTP/SIP/other latency-sensitive packets (pending); Port priority; Priority mapping; Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ; Traffic shaping; Rate limit; 1.5K ACL for Ethernet, IPv4 and IPv6 |
| DHCP | DHCP server, DHCP relay, Option 82, 60,160 and 43 |
| Maintenance | CPU and memory monitoring, SNMP, RMON, LLDP&LLDP-MED, backup and restore, syslog, alert, diagnostics including Ping, Traceroute, port mirroring, UDLD(TBD) and copper test |
| Security | User hierarchical management and password protection, HTTPS, SSH, Telnet; 802.1X authentication; AAA authentication including RADIUS, TACACS+; Storm control; Port isolation, port security, sticky MAC; Filtering MAC address; IP source guard, DoS attack prevention, ARP inspection; DHCP Snooping; Loop protection including BPDU protection, root protection and loopback protection; Kensington Security Slot (Kensington Lock) support |
| Mounting | Desktop, wall-mount, or rack-mount (rack-mount brackets included) |
| LEDs | 1x tri-color LED for device tracking and status indication, 20x green-color LEDs for data ports, 16x yellow-color LEDs for PoE ports |
| Fan | 1 |
| Environmental | Operation: 0°Cto 45°C, humidity 10-90% RH(Non-condensing) |
| Dimensions | 440mm(L)*200mm(W)*44mm(H) |
-
Data SheetDownload
