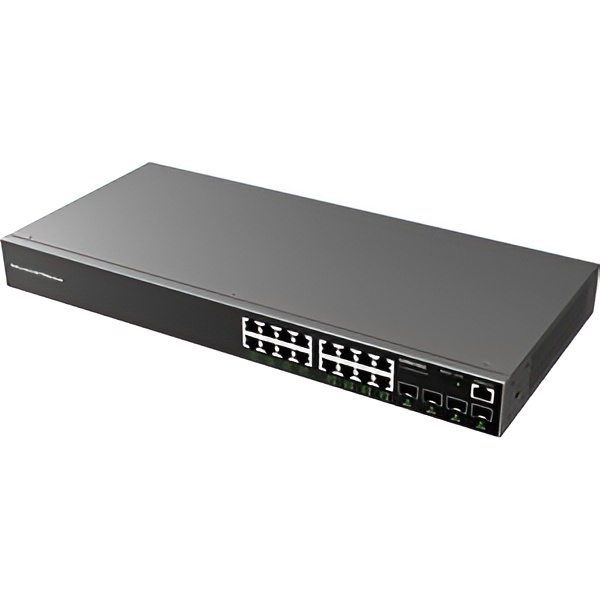

Grandstream GWN7802 Enterprise Layer 2+ Managed Network Switch with 16 x 1GigE, 4 x SFP Ports

Rs. 70,800.00

The Grandstream GWN7802 is a Layer 2+ managed network switch designed for small to medium-sized businesses. It features 16 Gigabit Ethernet ports and 4 Gigabit SFP ports, providing a scalable and secure network infrastructure. The switch supports advanced VLAN for traffic segmentation, QoS for traffic prioritization, and comprehensive security features. It can be managed locally through its web UI, as well as through Grandstream's cloud and on-premise platforms, GWN.Cloud and GWN Manager.

AVAILABILITY: Pre Order
PRODUCT CODE: NA
CATEGORY: Networking

Manageable

SFP Ports / Combo Ports

16 / 18 - Ports

Layer 2

Add to Cart

Technical Specifications

Details
Manufacturer's Code	GWN7802
Network Protocol	IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s
Gigabit Ethernet Ports	16
Gigabit SFP Ports	4
Console	1
# of PoE Ports	None
Integrated Power Supply	30W
Max Output Power per PoE Port	None
Max Total PoE Output Power	None
PoE Standards	None
Auxiliary Ports	1x Reset Pinhole
Forwarding Mode	Store-and-forward
Total non-blocking throughput	20Gbps
Switching Capability	40Gbps
Forwarding Rate	29.76M packets per second
Packet Buffer	4.1MB
Switching	8K static, dynamic and filtering MAC addresses; 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN; VLAN virtual interface; GVRP (pending); 8 link aggregation groups; Spanning tree, 64 instances for STP/RTSP/MSTP
Multicast	IGMP Snooping, MLD Snooping, MVR
QoS/ACL	Auto detection and prioritization of voice/video/RTP/SIP/other latency-sensitive packets (pending); Port priority; Priority mapping; Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ; Traffic shaping; Rate limit; 1.5K ACL for Ethernet, IPv4 and IPv6
DHCP	DHCP server, DHCP relay, Option 82, 60,160 and 43
Maintenance	CPU and memory monitoring, SNMP, RMON, LLDP&LLDP-MED, backup and restore, syslog, alert, diagnostics including Ping, Traceroute, port mirroring, UDLD(TBD) and copper test
Security	User hierarchical management and password protection, HTTPS, SSH, Telnet; 802.1X authentication; AAA authentication including RADIUS, TACACS+; Storm control; Port isolation, port security, sticky MAC; Filtering MAC address; IP source guard, DoS attack prevention, ARP inspection; DHCP Snooping; Loop protection including BPDU protection, root protection and loopback protection; Kensington Security Slot (Kensington Lock) support
Mounting	Desktop, wall-mount, or rack-mount (rack-mount brackets included)
LEDs	1x tri-color LED for device tracking and status indication, 20x green LEDs for data port
Fan	None
Environmental	Operation: 0°Cto 45°C, humidity 10-90% RH(Non-condensing)
Dimensions	440mm(L)200mm(W)44mm(H)
