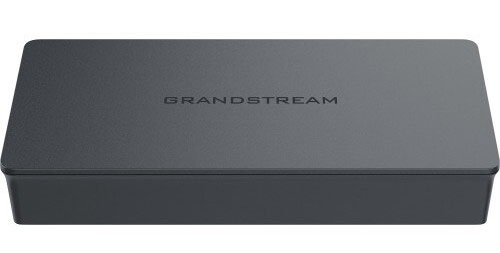

Grandstream GWN7701 Unmanaged Network Switch, 8 x GigE
The Grandstream GWN7701 is an 8-port unmanaged Gigabit switch ideal for homes and small-to-medium businesses.
- 5 and
8 Gigabit RJ45 ports, 4 port PoE+ output (GWN7700P & GWN7701P), 8 port
PoE+ output (GWN7701PA)
- Green
technology reduces power consumption
- LED
Indicators; Per port: Link/Activity/Speed Per device: Power
- Auto
MDI/MDIX crossover for all ports
- 802.3
af/at compliant Up to 30W on each port, (GWN7700P/GWN7701P/GWN7701PA only)
- Broadcast/Multicast/Unicast
Storm Control (fixed to 100Mbps) to monitor traffic levels
- Unlink
clear FDB Feature (GWN7701/GWN7701P/GWN7701PA only)
- QoS -
Supports Default Strict Priority when present
- AVAILABILITY: In Stock
- PRODUCT CODE: 100-10300
- CATEGORY: Networking
8 / 10 - Ports
Unmanageable
Technical Specifications
| Details | |
|---|---|
| Manufacturer's Code | GWN7701-AU |
| Gigabit Ports | 8 |
| PoE Port | N/A |
| Enclosure | Plastic |
| Mounting | Desktop/Wall-Mount |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p |
| Port Feature | (8) 10/100/1000Mbps RJ45 Ports, AUTO Negotiation, AUTO MDI/MDIX |
| Port Feature | 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex |
| PoE Configuration | None |
| LED Indicators | Per port: Link/Activity Green, Per device: Power Green |
| MAC Address Table | 8K |
| Switching Capacity | 16Gbps |
| Jumbo Frame | 9KB |
| Advanced Features | Mac Address Auto-Learning And Auto-Aging IEEE 802.3x Flow Control, 802.1p/DSCP QoS, Unlink clear FDB Feature, IGMP |
| Power Adapter | External 5VDC/0.6A |
| Max Power Consumption by Base System | 2.7W |
| Environmental | Operating Temperature: 0 to 40 °C (32 to 104 °F), Operating Humidity: 10% to 90% Non-condensing |
| Dimensions (L x W x H) | Unit: 164 x 80 x 30mm |
-
datasheetDownload
