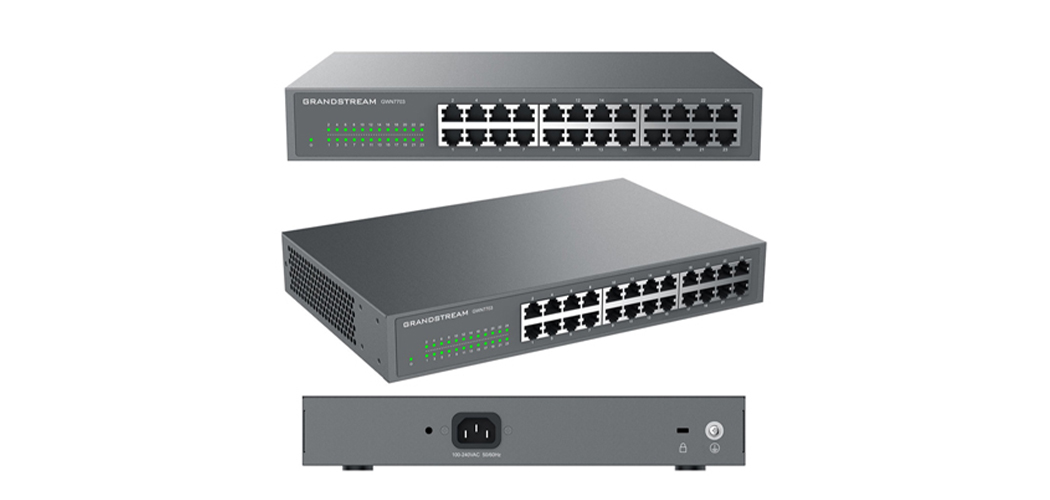

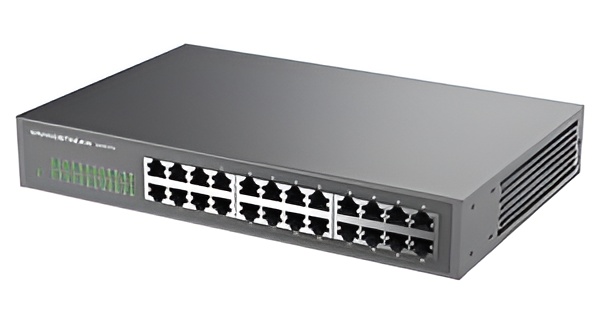

Grandstream GWN7703 Unmanaged Switch with 24 x 1GigE Ports - Desktop/Rack-Mount
The Grandstream GWN7703 is part of the
GWN7700 series of unmanaged network switches which provide a
fast and affordable way to add high-speed Gigabit connectivity to both offices
at home or small to medium-sized businesses. No installation or configuration
is needed, offering desktop and rack-mount options.
- AVAILABILITY: Pre Order
- PRODUCT CODE: NA
- CATEGORY: Networking
Unmanageable
24 /26 /28 - Ports
Technical Specifications
| Details | |
|---|---|
| Manufacturer's Code | GWN7703 |
| Gigabit Ports | 24 |
| Enclosure | Metal |
| Mounting | Desktop/Rack-Mount |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p |
| Port Feature | 16 × 10/100/1000Mbps RJ45 Ports, AUTO Negotiation, AUTO MDI/MDIX |
| Network Media | 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex |
| LED Indicators | Per port: Link/Activity - Green, Per device: Power Green |
| Mac Address Table | 8K |
| Switching Capacity | 48Gbps |
| Jumbo Frame | 10KB |
| Advanced Features | Mac Address Auto-Learning And Auto-Aging, IEEE 802.3x Flow Control, Half duplex backpressure |
| Power Adapter | Internal 100-240V AC, 50/60Hz, 18W |
| Max System Power Consumption | 13W@220V/50Hz |
| Environmental | Operating Temperature: 0 to 40 °C (32 to 104 °F), Storage Temperature: -20 to 60 °C (-4 to 140 °F), Operating Humidity: 10% to 90% Non-condensing, Storage Humidity: 10% to 90% Non-condensing |
| Dimensions (L x W x H) | Unit: 280 x 180 x 44mm; Package: 366 x 211 x 53mm |
| Weight | Unit: 1.35KG, Entire Package: 1.95KG |
| Compliance | FCC, CE, RCM, IC, UKCA |
-
Data SheetDownload
