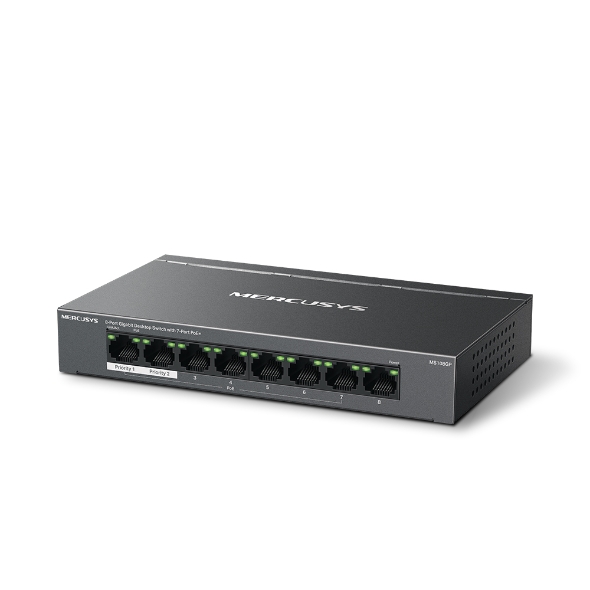

MERCUSYS MS108GP 8-Port Gigabit Desktop Switch with 7-Port PoE+

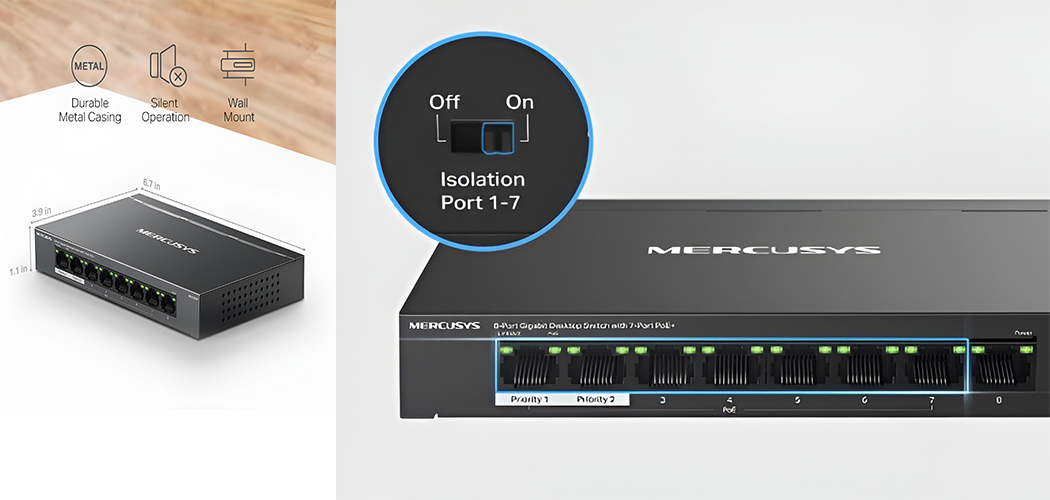

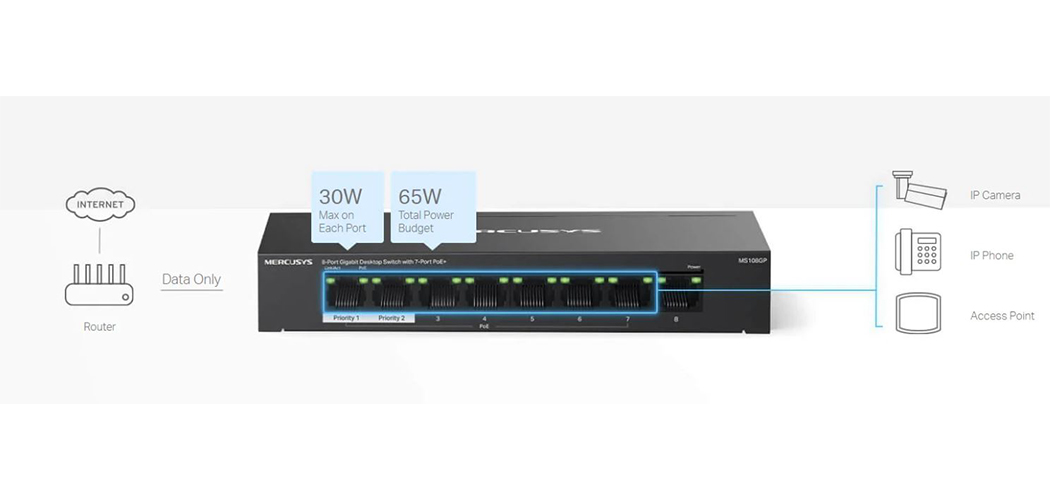

This 8-Port Full Gigabit PoE+ Switch features 7 PoE+ ports that deliver both power and data over a single cable, supporting up to 30W per port and 65W total. It includes an Extend Mode for 250m long-range transmission and an Isolation Mode for enhanced security. With IEEE 802.3af/at compliance, durable metal casing, and plug-and-play setup, it’s ideal for powering and connecting IP cameras, access points, and other devices efficiently.
- AVAILABILITY: In Stock
- PRODUCT CODE: 100-10253
- CATEGORY: Networking
1 Gigabit Ethernet
8 / 10 - Ports
Unmanageable
PoE
Technical Specifications
- Hardware
- Standards and Protocols
IEEE 802.3x Flow Control
- Dimensions
171*98*27 mm
- PoE Ports
RJ45
Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 7
PoE Power Budget: 65 W- External Power Supply
External Power Adapter (Output: 53.5V/1.31A)
- Installation
Desktop
Wall Mount
- Data Rates
- 10/100/1000 Mbps at Half Duplex
20/200/2000 Mbps at Full Duplex
- Jumbo Frame
9 KB- MAC Address Table 8K
- Max Power Consumption
5.07W（220 V / 50 Hz, no PD connected）
77.33W（220 V / 50 Hz, with 65W PD connected）
- Max Heat Dissipation
17.238 BTH/h （no PD connected)
262.922 BTH/h（with 65W PD connected）
- Others
- Package Contents
• 8-Port Gigabit Desktop Switch with 7-Port PoE+(MS108GP)
• Power Adapter
• Quick Installation Guide- Environment
- Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~95% RH non-condensing
-
Data SheetDownload
