MERCUSYS MS110P 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+

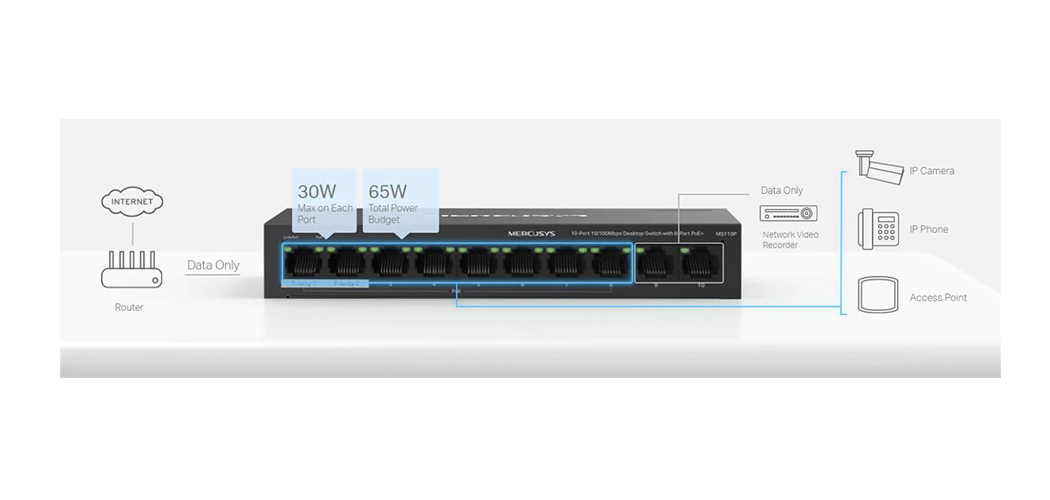

The MS110P is a 10-port 10/100 Mbps switch featuring 8 PoE+
ports that deliver both data and power over a single cable, supporting up to
30W per port and 65W total. It includes 2 uplink ports for Internet and NVR
connections and offers an extended PoE range of up to 250 meters
via Extend Mode.
- AVAILABILITY: In Stock
- PRODUCT CODE: 100-10252
- CATEGORY: Networking
8 / 10 - Ports
Unmanageable
Non PoE
Fast Ethernet
Technical Specifications
- Hardware
- Standards and Protocols
IEEE 802.3x Flow Control
- Dimensions 171*98*27 mm
- PoE Ports
RJ45
Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 8
PoE Power Budget: 65 W- Interfaces 10× 10/100 Mbps Ports, Auto-Negotiation, Auto MDI/MDIX

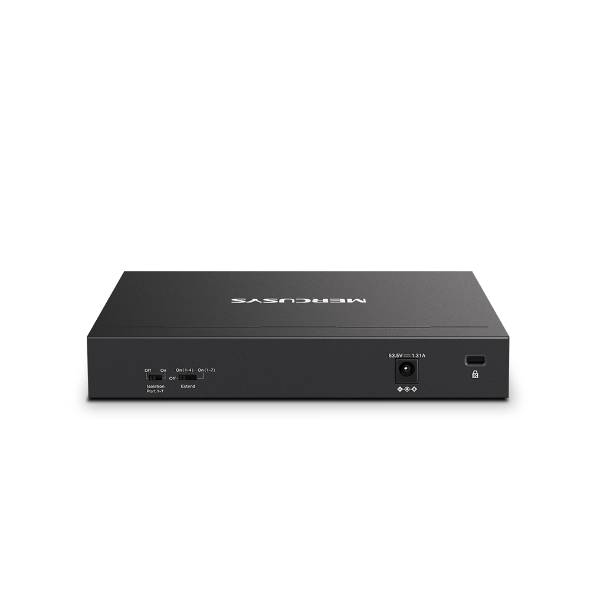

- External Power Supply
External Power Adapter (Output: 53.5V/1.31A)
- Installation
Desktop
Wall Mount
- Data Rates
10/100 Mbps at Half Duplex
20/200 Mbps at Full Duplex- Jumbo Frame 2 KB
- MAC Address Table
2K
- Max Power Consumption
2.96W（220 V / 50 Hz, no PD connected）
77.52W（220 V / 50 Hz, with 65W PD connected）
- Max Power Consumption
10.064 BTH/h （no PD connected)
263.568 BTH/h（with 65W PD connected）
- Others
- Package Contents
• 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+ (MS110P)
• Power Adapter
• Quick Installation Guide- Environment
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~95% RH non-condensing
-
Data SheetDownload
