Grandstream GWN7701PA Unmanaged 145W PoE+ Switch with 8 x 1GigE PoE+ Ports - Desktop/Rack-Mount
The Grandstream GWN7701PA is an unmanaged 8-port PoE+ Gigabit switch, ideal for homes and small to medium businesses. It offers fast network expansion with energy-saving technology, auto MDI/MDIX, LED indicators, built-in storm control, and QoS support for reliable, high-performance connectivity.
- AVAILABILITY: Pre Order
- PRODUCT CODE: NA
- CATEGORY: Networking
8 / 10 - Ports
Unmanageable
PoE
Technical Specifications
| Manufacturer's Code | GWN7701PA |
| Gigabit Ports | 8 |
| PoE Port | 8 |
| Enclosure | Metal |

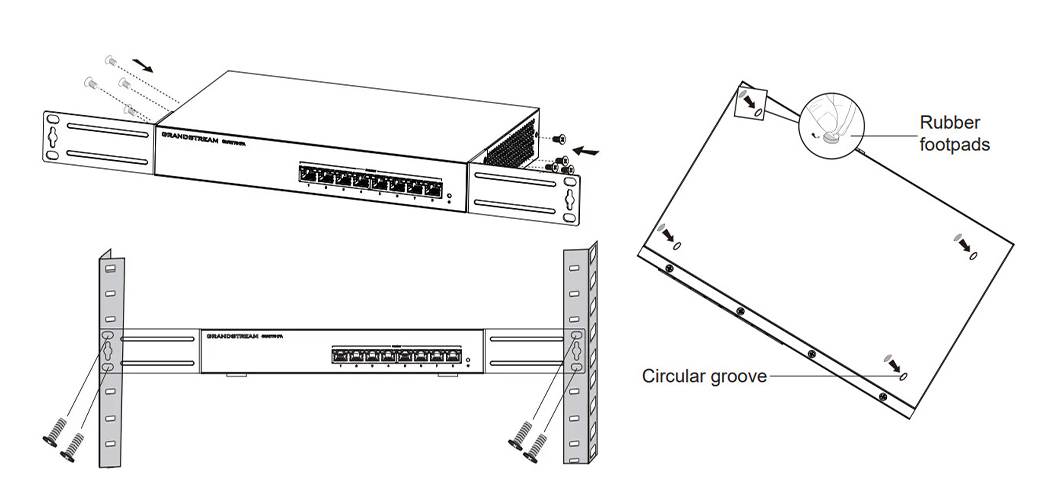

| Mounting | Desktop/Rack-Mount |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at |
| Port Feature | (8) 10/100/1000Mbps RJ45 Ports, AUTO Negotiation, AUTO MDI/MDIX |
| Port Feature | 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex |
| PoE Configuration | Ports 1-8 802.3af/at compliant, 30W per port, total power budget 145W |
| LED Indicators | Per port: Link/Activity Green, Per device: Power Green |
| MAC Address Table | 8K |
| Switching Capacity | 16Gbps |
| Jumbo Frame | 9KB |
| Advanced Features | Mac Address Auto-Learning And Auto-Aging IEEE 802.3x Flow Control, 802.1p/DSCP QoS, Unlink clear FDB Feature, IGMP |
| Power Adapter | Internal 100-240VAC, 50-60Hz, 150W |
| Max Power Consumption by Base System | 6.7W @220V/50Hz (excluding PoE output power) |
| Environmental | Operating Temperature: 0 to 40 °C (32 to 104 °F), Operating Humidity: 10% to 90% Non-condensing |
| Dimensions (L x W x H) | Unit: 280 x 180 x 44mm |
-
Data SheetDownload
