Grandstream GWN7660ELR GWN Enterprise-Grade 2x2:2 Wi-Fi 6 Weatherproof Long-Range Access Point
The GWN7660ELR is an enterprise-grade long-range Wi-Fi
6 access point that allows businesses to build next-generation Wi-Fi
networks for high-density environments.
- 3 Gbps
aggregate wireless throughput, 1 Gbps RJ45, and 2.5 Gbps SFP wireline
ports
- Dual-band
2x2:2 MIMO with OFDMA technology
- Self-power
adaptation upon auto-detection of PoE or PoE+
- Support
256 concurrent Wi-Fi client devices
- Up to
300-meter coverage range
- Advanced
QoS to ensure real-time performance of low-latency applications
- Anti-hacking
secure boot and critical data/control lockdown via digital signatures,
unique security certificate/random default password per device
- Flexibility
of 5 internal antennas
- Embedded
controller manages up to 50 local GWN APs; GDMS Networking offers
unlimited AP management, & GWN Manager offers on-premise software AP
management
- AVAILABILITY: In Stock
- PRODUCT CODE: 100-10299
- CATEGORY: Networking
Wi-Fi 6 (IEEE 802.11ax)
Indoor/Outdoor
Celling Mounted
Wall Mounted
Pole Mounted
Technical Specifications
| Details | |
|---|---|
| Manufacturer's Code | GWN7660ELR |
| Wi-Fi Standards | IEEE 802.11 b/g/n/ac/ax |
| Antennas | 5 individual internal antennas; 2.4GHz x 2, gain 5.5 dBi; 5 GHz x 2, gain 6.0 dBi; BT gain 4.5 dBi |
| Frequency Bands | 2.4GHz radio: 2412 - 2484 MHz, 5GHz radio: 5180 - 5825 MHz *Not all frequency bands can be used in all regions |
| Channel Bandwidth | 2.4GHz: 20 and 40 MHz, 5GHz: 20, 40, 80 and 160 MHz |
| System Security | WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/ control lockdown via digital signatures, unique security certificate and random default password per device |
| MU-MIMO | 2×2:2 2.4GHz, 2×2:2 5GHz |
| Coverage Range | Up to 300 meters *Coverage range can vary based on environment |
| Maximum TX Power | 5GHz: 26dBm, 2.4GHz: 27dBm *Maximum power varies by country, frequency band, and MCS rate |
| Maximum RX Sensitivity | 2.4GHz: -96dBm, 5GHz: -90dBm |
| SSIDs | 32 SSIDs total, 16 per radio (2.4GHz & 5GHz) |
| Concurrent Clients | 256 |
| Network Interfaces | 1x 1G Port and 1x 2.5G SFP |
| Port Bluetooth | BLE 5.2 |
| Auxiliary Ports | 1x Reset Pinhole, 1x Kensington lock |

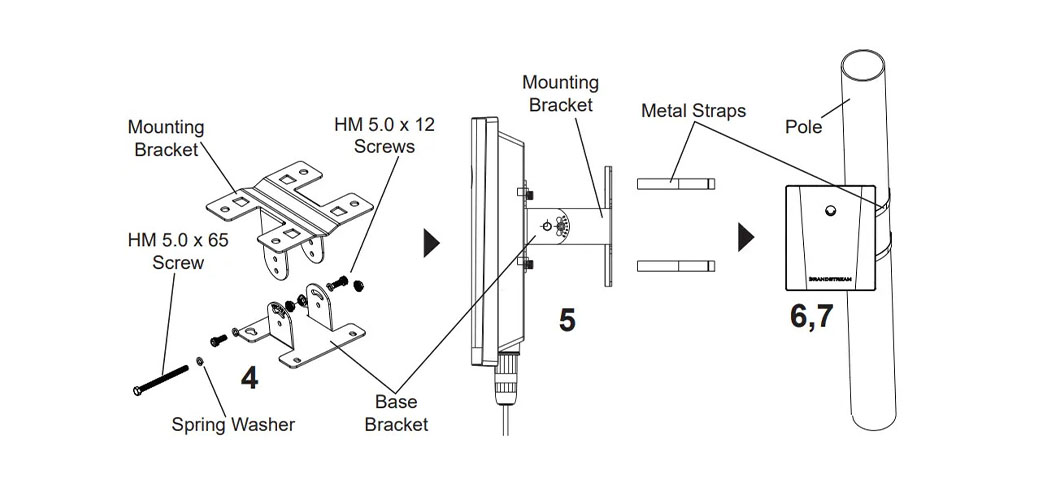

| Mounting | Wall mount or pole mount, kits included |
| LEDs | 1 tri-color LED for device tracking and status indication; 1 single-color LED for SFP |
| Network Protocols | IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM |
| QoS | 802.11e/WMM, VLAN, TOS |
| Network Management | Embedded controller can manage up to 50 local GWN APs, GWN.Cloud offers a free cloud management platform for unlimited GWN APs, GWN Manager offers premise-based software controller for up to 3,000 GWN APs |
| Power and Green Energy Efficiency | PoE 802.3af/ 802.3at; Maximum Power Consumption: 13W (Not Included) |
| Environmental | Operation:-30°Cto 60°C, Storage: -30°C to 70°C, Humidity: 5% to 95% Non-condensing |
| Physical | Unit Dimension: 270mm x 230mm x 57mm, Unit (including brackets): 1kg, Entire Package Dimension: 439mm x 329mm x 137mm, Entire Package Weight: 2.4kg |
| Weatherproof Grade | IP67-level weatherproof capability when installed vertically |
-
DatasheetDownload
