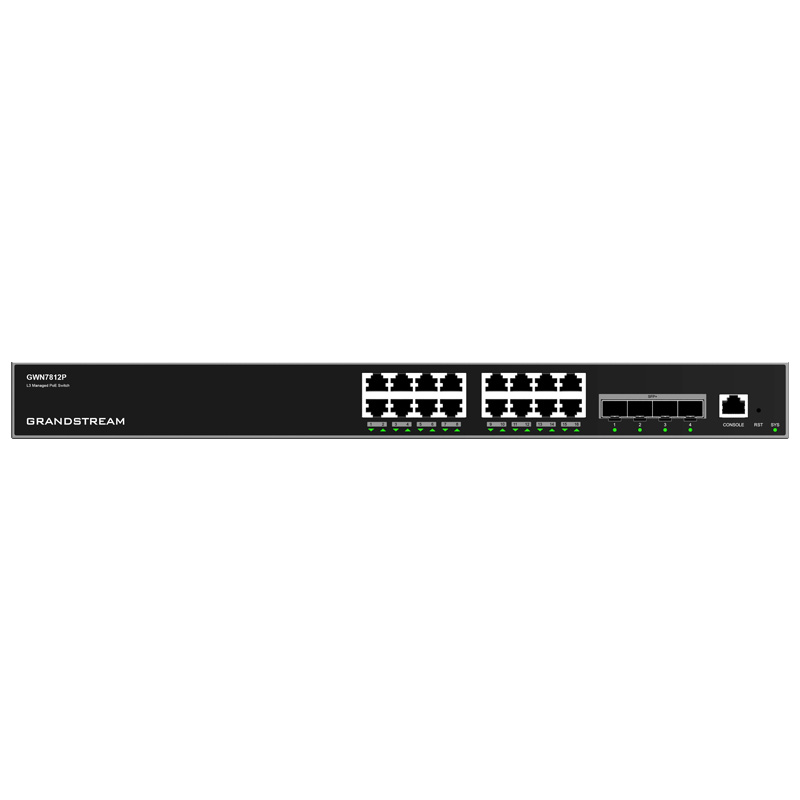

Grandstream GWN7812P Enterprise Layer 3 Managed 240W PoE+ Network Switch with 16 x GigE PoE+, 4 x 10Gigabit SFP+ Ports
The Grandstream GWN7812P is a Layer 3 enterprise managed PoE network switch with 16 Gigabit Ethernet ports and 4 SFP+ uplink ports. Designed for medium-to-large businesses, it offers smart PoE output, advanced VLAN, QoS, IGMP/MLD snooping, and robust security features. It supports flexible management via Web UI, CLI, GWN.Cloud, and GWN Manager, making it an ideal choice for scalable, secure, and high-performance networks.
- AVAILABILITY: Pre Order
- PRODUCT CODE: NA
- CATEGORY: Networking
Manageable
PoE
SFP Ports / Combo Ports
16 / 18 - Ports
Technical Specifications
| Details | |
|---|---|
| Manufacturer's Code | GWN7812P-AU |
| Gigabit Ethernet Ports | 16 |
| 10Gigabit SFP+ Ports | 4, Note: Supports DAC cable, and must be ≤ 5m |
| Network Protocol | IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1x |
| Maximum no. of Supported Modules | SM-10G: 4, MM-10G: 4, RJ45-10G: 2, Note: RJ45-10G modules must be interval inserted |
| Console | 1 |
| Number of PoE Ports | 16 |
| Link Aggregation | 10 |
| Max Output Power per PoE Port | 30W |
| Max Total PoE Output Power | 240W |
| PoE Standards | IEEE 802.3af/at |
| Auxiliary Ports | 1x Reset Pinhole |
| Forwarding Mode | Store-and-forward |
| Total non-blocking throughput | 56Gbps |
| Switching Capability | 112Gbps |
| Forwarding Rate | 83.328Mpps |
| Packet Buffer | 12MB |
| Mounting | Desktop, Wall-Mount, or Rack-Mount(rack-mounting kits included) |
| System LEDs | 1x tri-color LED for device tracking and status indication |
| Data Transferring LEDs | 20x green-color LEDs |
| PoE Powered LEDs | 16x yellow-color LEDs |
| Fans | 2 |
| Environmental | Operation: 0°C to 45°C, humidity 10-90% RH(Non-condensing), Storage: -10°C to 60°C, humidity: 5% to 95% RH(Non-condensing) |
| Dimensions | 440mm(L)x200mm(W) x44mm(H) |
| Unit Weight | 3.03Kg |
| Compliance | FCC, CE, RCM, IC, UKCA |
-
Data SheetDownload
