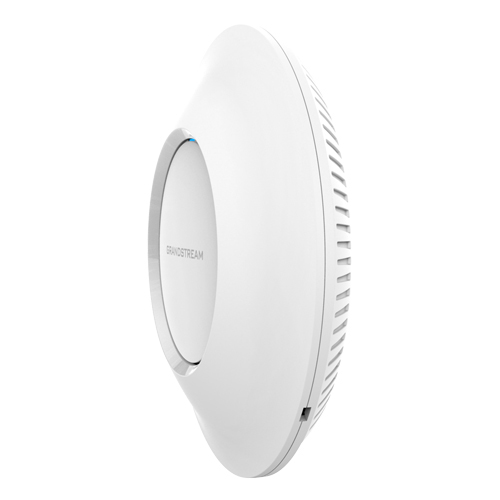

Grandstream GWN7664E High-Performance AX6000 Enterprise-Grade 4x44 MU-MIMO Wi-Fi 6 Access Point
The GWN7664E is a powerful, enterprise-grade 802.11ax Wi-Fi
6 access point, ideal for medium-to-large sized businesses, multiple-floor
buildings, residential settings, and commercial locations.

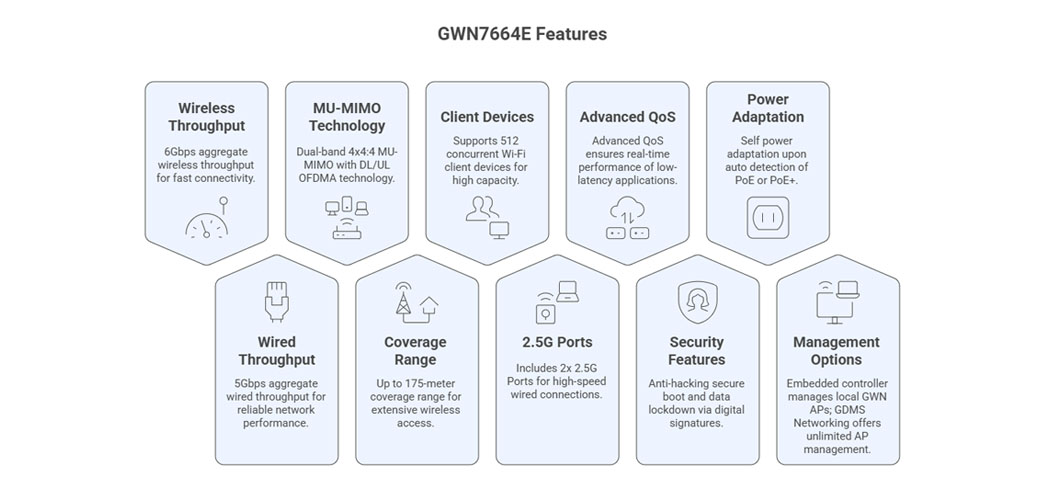

- 6Gbps
aggregate wireless throughput, 5Gbps aggregate wired throughput
- Dual-band
4x4:4 MU-MIMO with DL/UL OFDMA technology
- Up to
175-meter coverage range
- Supports
512 concurrent Wi-Fi client devices
- Includes
2x 2.5G Ports
- Advanced
QoS to ensure real-time performance of low-latency applications
- Anti-hacking
secure boot and critical data/control lockdown via digital signatures,
unique security certificate/random default password per device
- Self
power adaptation upon auto detection of PoE or PoE+
- Embedded
controller manages up to 50 local GWN APs; GDMS Networking offers
unlimited AP management, & GWN Manager offers on-premise software AP
management
- AVAILABILITY: In Stock
- PRODUCT CODE: NA
- CATEGORY: Networking
Wi-Fi 6 (IEEE 802.11ax)
Indoor
Celling Mounted
Technical Specifications
| Details | |
|---|---|
| Manufacturer's Code | GWN7664E |
| Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Antennas | 8 individual internal antennas, 4 per band; 2.4GHz, gain 3.5dBi, 5 GHz, gain 4.5dBi |
| Wi-Fi Data Rates Max | 5GHz: IEEE 802.11ax: 7.3 Mbps to 4804 Mbps, 2.4GHz: IEEE 802.11ax: 7.3 Mbps to 1147 Mbps |
| Frequency Bands | 2.4GHz Radio: 2400 - 2483.5 MHz, 5GHz Radio: 5150 - 5895 MHz |
| Channel Bandwidth | 2.4GHz: 20 and 40 MHz, 5GHz: 20, 40, 80 and 160 MHz |
| Wi-Fi and System Security | WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device |
| MU-MIMO | 4×4:4 2.4GHz, 4×4:4 5GHz |
| Coverage Range | Up to 175 meters *coverage range can vary based on environment |
| Maximum TX Power | 5GHz: 25.5dBm, 2.4G: 26.5dBm *Maximum power varies by country, frequency band and MCS rate |
| Maximum RX Sensitivity | 2.4GHz -97dBm, 5GHz -93dBm |
| SSIDs | 32 SSIDs total, 16 per radio (2.4GHz & 5GHz) |
| Concurrent Clients | 512 |
| Network Interfaces | 2 x 2.5G Ethernet Ports |
| Auxiliary Ports | 1x Reset Pinhole, 1x Kensington lock |

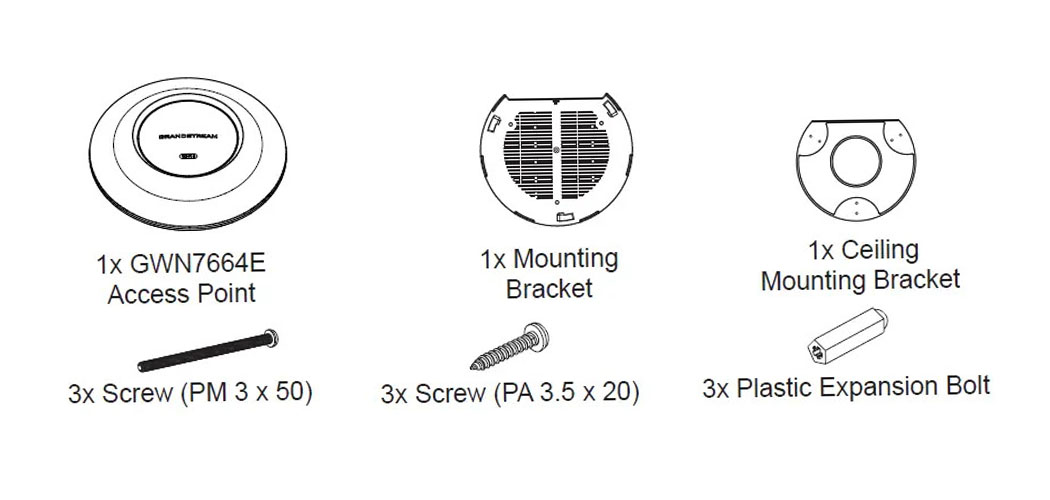

| Mounting | Indoor wall mount or ceiling mount, kits included |
| LEDs | 3 tri-color LEDs for device tracking and status indication |
| Network Protocols | IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM |
| QoS | 802.11e/WMM, VLAN, TOS |
| Network Management | Embedded controller can manage up to 50 local GWN APs, GWN.Cloud offers a free cloud management platform for unlimited GWN APs, GWN Manager offers premise-based software controller for up to 3,000 GWN APs |
| Power and Green Energy Efficiency | PoE 802.3at; Maximum Power Consumption: 21W |
| Environmental | Operation: 0°Cto 50°C, Storage: -10°C to 60°C, Humidity: 10% to 95% Non-condensing |
| Physical | Unit Dimension: 205.3mmx205.3mmx45.9mm; Unit Weight: 0.714Kg, Entire Package Dimension: 258mmx247mmx86mm; Entire Package Weight: 1.06Kg |
| Compliance | FCC, CE, RCM, IC |
-
datasheetDownload
