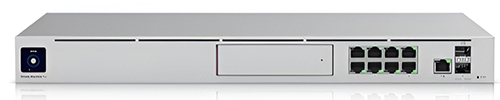

Ubiquiti UDM-Pro

Rs. 206,200.00

Ubiquiti UDM-Pro 1U Rackmount 10Gbps UniFi Multi-Application System with 3.5" HDD Expansion and 8 Port Switch. UniFi Dream Machine Pro (UDM-Pro) is an all-in-one enterprise network appliance. UDM-Pro integrates all current and upcoming UniFi controllers with a security gateway, 10G SFP+ WAN, 8-port Gbps switch and off-the-shelf 3.5" HDD support.The UDM-Pro enterprise-class security gateway combines routing, 10 Gbps SFP+ WAN, application visibility, VPN services, and 3.5 Gbps full threat management throughput into a single device.The UDM-Pro features dual WAN ports with failover and U-LTE1 backup connectivity to ensure reliable access to the internet. UniFi SmartPower USP-RPS2 provides redundant power in the event of AC power loss.

AVAILABILITY: Coming Soon
PRODUCT CODE: NA
CATEGORY: Networking

Add to Cart

Technical Specifications

Dimensions

442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")

UniFi Application Suite

Network

✓

Protect

✓

Access

✓

Talk

✓

Connect

✓

Managed UniFi Devices

100+

Managed Cameras

(24) HD (14) 2K (8) 4K

Simultaneous Users Connected

1,000+

Max. WAN Port Count

Default WAN Ports

(1) 10G SFP+ (1) GbE RJ45

Port Layout

1 GbE RJ45

9 (1G/100M/10M)

10G SFP+

2 (10G/1G)

IDS/IPS Throughput

3.5 Gbps

Form Factor

Rack mount (1U)

Redundancy

Shadow Mode (VRRP) Gateway Failover DC Power Backup

Stateful Firewall

✓

Application-Aware Layer 7 Firewall

✓

DPI & Traffic Identification

✓

Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)

✓

Content Filtering

✓

Intrusion Prevention (IPS/IDS)

✓

Ad Blocking

✓

IDS/IPS Signatures

55,000+ with CyberSecure

VLAN/Subnet-based Traffic Segmentation

✓

License-Free SD-WAN

✓

Site-to-Site VPN

Site Magic

✓

IPsec

✓

OpenVPN

✓

VPN Server

Identity Endpoint One-Click VPN

✓

Teleport Zero-Configuration VPN

✓

WireGuard

✓

OpenVPN

✓

L2TP

✓

VPN Client

OpenVPN

✓

WireGuard

✓

Multi-WAN Load Balancing

✓

Shadow Mode (VRRP) High Availability

✓

Dynamic Routing

OSPF

✓

BGP

✓

Advanced QoS

✓

Multicast DNS (mDNS)

✓

Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)

✓

Integrated RADIUS Server

✓

RADIUS over TLS (RadSec)

✓

Additional Internet Failover with UniFi LTE Backup

✓

Internet Quality and Outage Reporting

✓

MAC Address Table Size

4,000

Policy-based WAN and VPN Routing

✓

Customizable DHCP Server

✓

IPv6 ISP Support

✓

IGMP Proxy

✓

NVR Storage

(1) 3.5" NVR HDD bay

Max. Power Consumption

33W

Power Method

(1) Universal AC input, 100—240V AC, 50/60 Hz (1) USP-RPS DC input

Power Supply

AC/DC, internal, 50W

Supported Voltage Range

100—240V AC

Processor

Quad-core ARM® Cortex®-A57 at 1.7 GHz

System Memory

4 GB

On-board Storage

16 GB

Weight

3.9 kg (8.6 lb)

Enclosure Material

Aluminium CNC, SGCC steel

Mount Material

SGCC steel

LCM Display

1.3" touchscreen

Management

Ethernet Bluetooth

LEDs

Ethernet

✓

SFP+

✓

RPS

✓

PSU

✓

HDD

✓

Button

(1) Factory-reset

ESD/EMP Protection

Air: ± 15kV, contact: ± 8kV

Ambient Operating Temperature

-10 to 40° C (14 to 104° F)

Ambient Operating Humidity

5 to 95% noncondensing

NDAA Compliant

✓

Certifications

CE, FCC, IC, Anatel, SRRC

datasheet
Download

Related Product

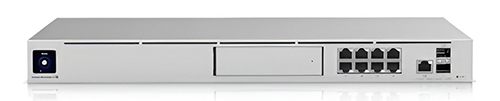

Ubiquiti UDM-SE

Ubiquiti Dream Machine Special Edition (UDM-SE) 10G Cloud Gateway with 100+ UniFi device / 1,000+ client support, 3.5 Gbps IPS routing, and built-in PoE switching.

Rs. 257,150.00

ADD TO CART

Grandstream GWN7001 Multi-WAN Gigabit VPN Router with built-in Firewall - 6 x 1GigE ports

Multi-WAN Gigabit VPN Router with built-in Firewall - 6 x 1GigE ports

Rs. 43,200.00

ADD TO CART

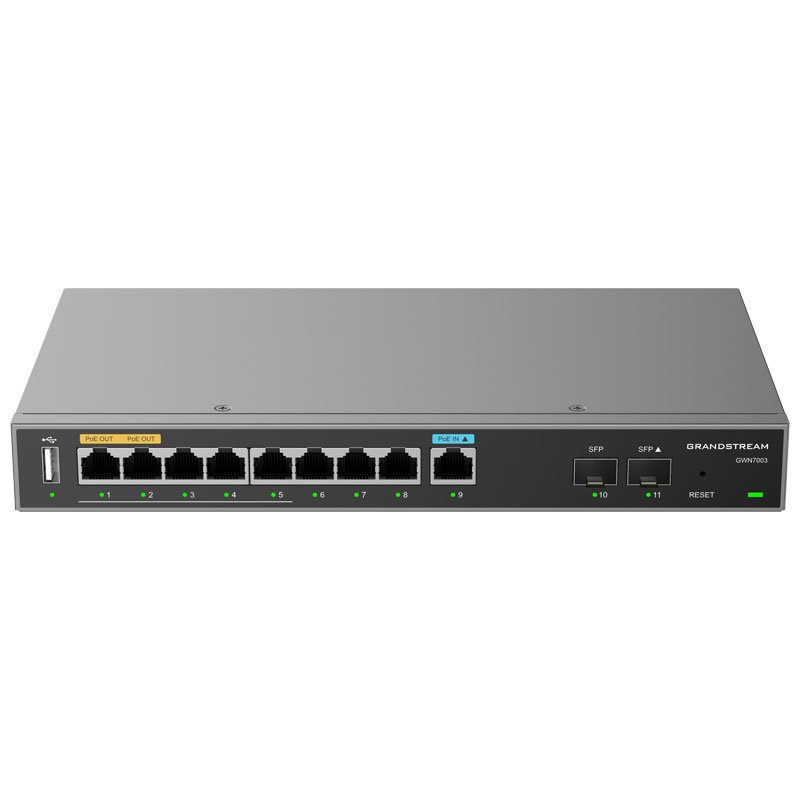

Grandstream GWN7003 Multi-WAN Gigabit VPN Router with built-in Firewall - 9 x 1GigE ports, 2 x 2.5GigE Ports
