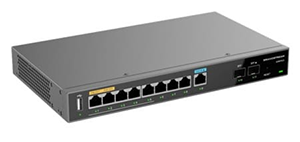

Grandstream GWN7003 Multi-WAN Gigabit VPN Router with built-in Firewall - 9 x 1GigE ports, 2 x 2.5GigE Ports
The Grandstream GWN7003 is a high-performance Multi-WAN
Gigabit VPN router with built-in firewall protection, featuring 9× 1GigE ports
and 2× 2.5GigE ports. Ideal for business networks, it supports secure, scalable
wired, wireless, and VPN connectivity across single or multiple locations.
- AVAILABILITY: Pre Order
- PRODUCT CODE: NA
- CATEGORY: Networking
Technical Specifications
| Details | |
|---|---|
| Manufacturer's Code | GWN7003 |
| CPU | Dual ARM Cortex A53 1GHz |
| Memory and NAT Sessions | 512MB RAM, 256MB Flash, 60K NAT sessions |
| Network Interfaces | 2x Gigabit SFP ports and 9x Gigabit Ethernet ports (All ports are WAN/LAN configurable) |
| NAT Throughput | 2.2Gbps |
| IPsec VPN Throughput | 530Mbps |
| Auxiliary Ports | 1x USB 2.0 port, 1x Reset Pinhole |
| Mounting | Desktop, wall-Mount or rack-mount (rack-mount brackets included) |
| LEDs | 13x single-color LEDs for device tracking and status indication |
| Connection Type | DHCP, Static IP, PPPoE, PPTP, L2TP |
| Network Protocols | IPv4, IPv6, IEEE802.1Q,IEEE 802.1p, IEEE802.1x, IEEE802.3, IEEE 802.3u, IEEE 802.3x,IEEE802.3ab |
| QoS | VLAN, TOS, Support multiple traffic classes, filter by port, IP address, DSCP, and policing, App Qos, VoIP Prioritization |
| Firewall | DDNS, Port Forwarding, DMZ, UPnP, Anti-DoS, traffic rules, NAT, ALG |
| Security | Application/protocol monitoring and traffic statistics, Content filtering: Supports Application/URL/DNS/Web Content Filtering, Safe Search |
| VPN | SSL, IPSec, PPTP, LT2P (Client), Wireguard (pending) |
| Max Concurrent VPN Tunnels | Up to 100 Tunnels |
| Network Management | GWN7003 embedded controller can manage itself and up to 150 GWN APs |
| PoE Input | Standard: IEEE 802.3af/at |
| PoE Output | 2x PoE out ports, Passive 48V or IEEE802.3af |
| PoE Power Budget | 24V DC 1A: 12.8W, 24V DC 1.5A: 24.8W |
| Power & Green Energy Efficiency | Universal power adaptor included, Input: 100-240VAC 50-60Hz. Output: 24V DC 1A (24W) |
| Dimensions | 210mm(L)x130mm(W)x35mm(H) |
-
Data SheetDownload
