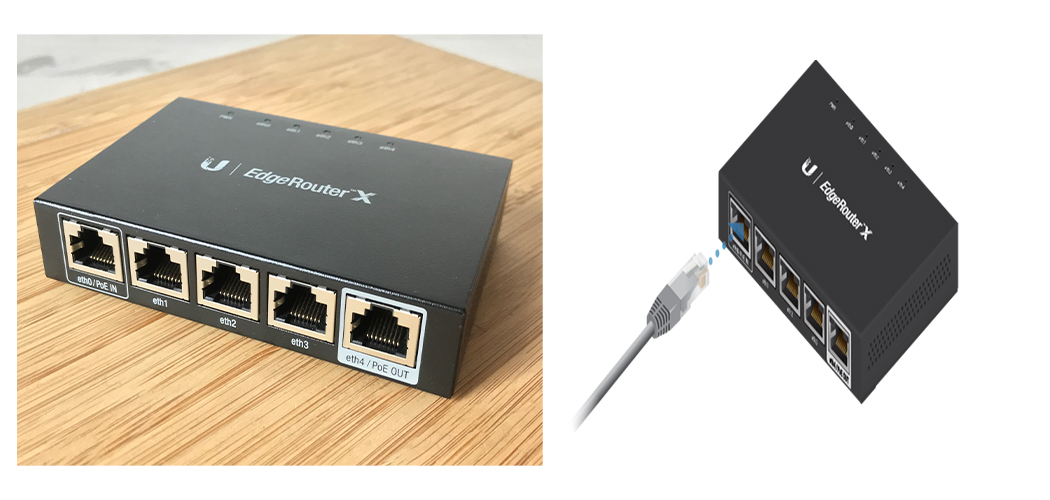

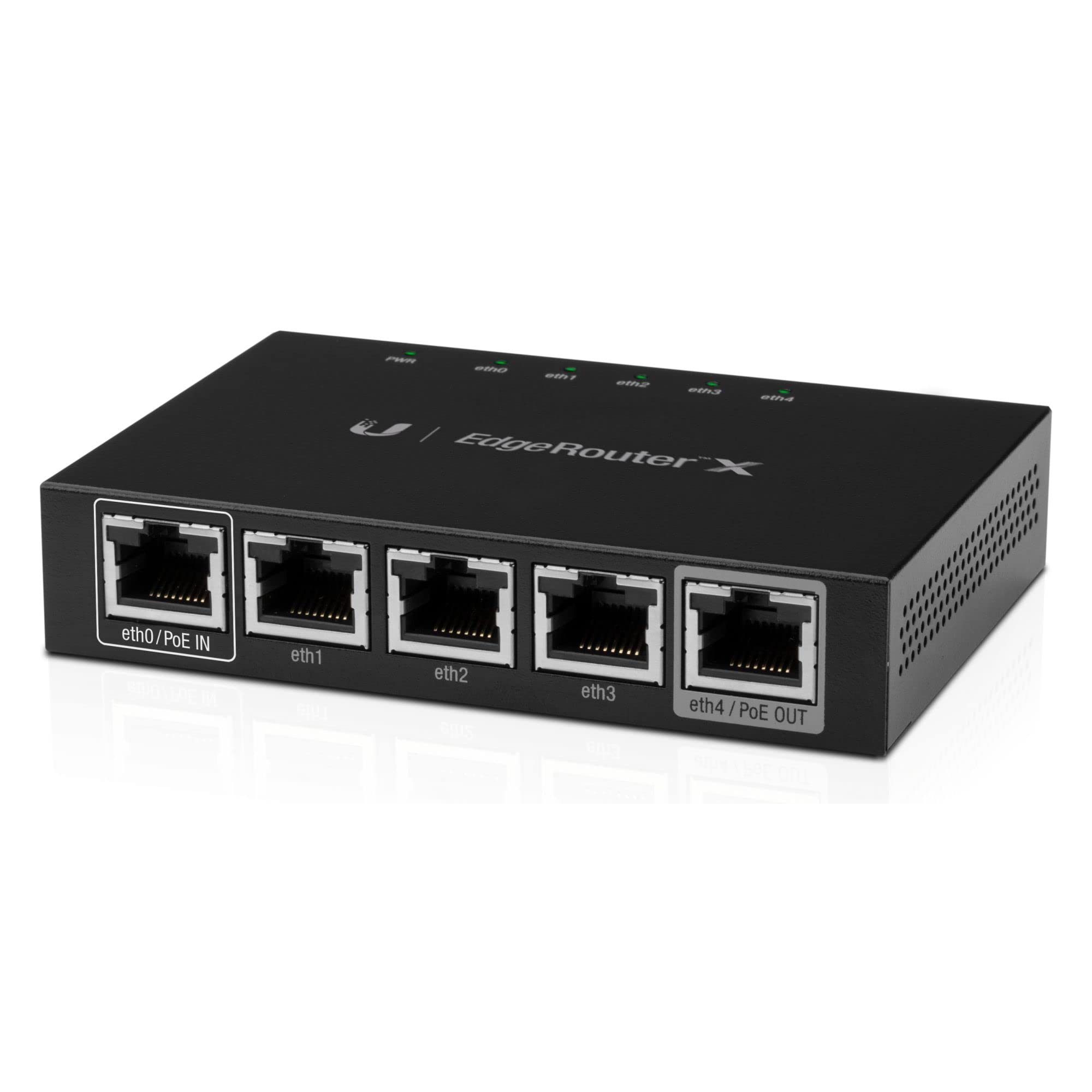

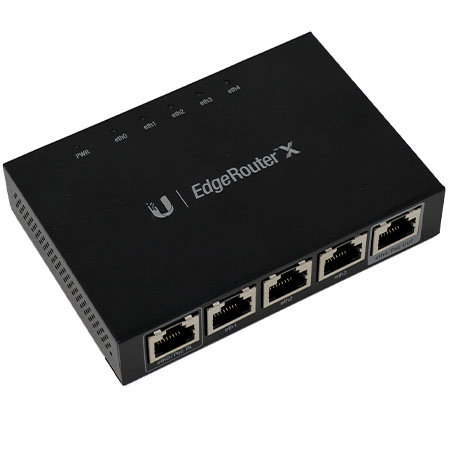

Ubiquiti ER-X Edge Router

Ubiquiti EdgeRouter X (ER-X) - Technical Specification

General

• Dimensions: 110 x 75 x 22 mm (4.33 x 2.95 x 0.87")
• Weight: 175g (6.17 oz)
• Max. Power Consumption: 5W
• Power Input: 12VDC, 0.5A Power Adapter (Included) or 24V Passive PoE
• Power Supply: External AC/DC Adapter
• Supported Voltage Range: 9 to 26VDC
• Button: Reset
• LED: Power, Ethernet 0-4
• Processor: Dual-Core 880 MHz, MIPS1004Kc
• System Memory: 256 MB DDR3 RAM
• Code Storage: 256 MB NAND
• Certifications: CE, FCC, IC
• Wall-Mount: Yes
• ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV
• Operating Temperature: -10 to 45° C (14 to 113° F)
• Operating Humidity: 10 to 90% Noncondensing

Networking Interfaces

• Data/PoE Input Port: (1) 10/100/1000 RJ45 Port
• Data Ports: (3) 10/100/1000 RJ45 Ports
• Data/PoE Passthrough Port: (1) 10/100/1000 RJ45 Port
