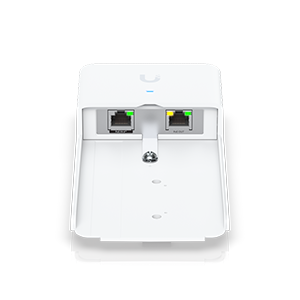

Ubiquiti UACC-LRE Long-range Gigabit Ethernet adapter
Long-range Gigabit Ethernet adapter that receives PoE/PoE+ and offers passthrough PoE output. Quickly expand your wired Ethernet connections to reach distant IP security cameras and other PoE+ compatible devices with the Long-Range Ethernet Repeater from Ubiquiti Networks. Made with an IPX5-rated, UV-stabilized plastic housing, this compact and budget-friendly module can be used for both indoor and outdoor applications. Simply connect your compatible network switch to the Gigabit Ethernet input port, then attach the remote device to the RJ45 Gigabit Ethernet passthrough port to transfer data and power. Multiple Ethernet Repeaters may be daisy-chained together to create up to 0.62-mile-long links, operating at 100 Mb/s and supporting up to 7W of power.
- AVAILABILITY: In Stock
- PRODUCT CODE: 100-10212
- CATEGORY: Networking
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 196.5 x 93.5 x 39 mm ( 7.7 x 3.7 x 1.5") |
| Weight | 350 g (12.3 oz) |
| Enclosure material | UV stabilized polycarbonate |
| Mounting material | Stainless steel |
| Weatherproofing | IPX5 |
| Hardware | |
| Networking interface | (2) GbE RJ45 ports |
| PoE interface | (1) Passthrough PoE output 2-pairs (pins 1,2+; 3,6-) |
| Power method | PoE/PoE+ 2-pairs (pins 1, 2+; 3, 6-)* *May not be supported by certain third-party switches. We recommend using a UniFi switch to power the device. |
| Max. power consumption (excluding PoE out) | 1.5W |
| Voltage range | 37—57V DC |
| ESD/EMP protection | Air/contact: ± 30kV |
| DC sparkover voltage | 90V at 100V/s |
| Max. impulse sparkover voltage | 700V at 1kV/μs |
| Discharge current | 10kA+ |
| Max. MTU | 1,500 bytes |
| Modes | Long-range indoor Outdoor ethernet repeater |
| Ambient operating temperature | -40 to 80° C (-40 to 176° F) |
| Ambient operating humidity | 10 to 95% non-condensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | Blue: power ON |
| Ethernet | Green: 1 Gbps Amber: 10/100 Mbps |
| PoE | Amber: passthrough PoE out |
-
