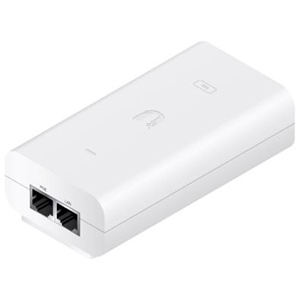

Ubiquiti U-PoE (U PoE-af)

Rs. 6,500.00

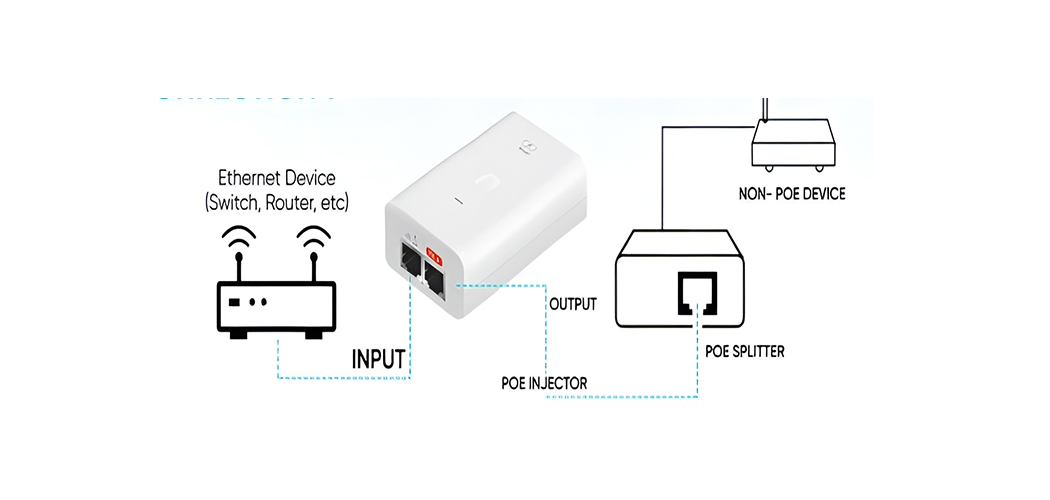

The Ubiquiti U-PoE (U-PoE-af) is a 15W PoE adapter designed to provide power to UniFi devices that support 802.3af PoE. It's ideal for powering access points in wireless mesh setups or reducing the load on PoE switches. Compact and efficient, it ensures flexible installation without compromising performance.

AVAILABILITY: In Stock
PRODUCT CODE: 100-10072
CATEGORY: Networking

Add to Cart

Technical Specifications

Specifications
Model	U-POE-af
Dimensions	86 x 46 x 33 mm (3.39 x 1.81 x 1.30")
Weight	100 g (3.53 oz)
Output voltage	48V DC @ 0.32A
LAN activity indicator	No
Gigabit LAN port	Yes
Remote reset capability	No
Reset Button	No
Rated voltage	100—240V AC @ 50/60Hz
Input current	500mA Max.
Inrush current	<100A Peak at 25°C
Efficiency	84.25+%
Output ripple	200mV p-p
Switching frequency	65 kHz
Line regulation	≤ 3%
Load regulation	≤ 5%
2-pair powering	Pins 4, 5 (+) and 7, 8 (-)
4-pair powering	No
AC connector	IEC-320 C6
Data In / PoE	RJ45 shielded socket
Surge protection	Difference and common mode
Clamping protection	11V data, 60V power
Max. surge discharge	1500A (8/20 μs) power
Peak pulse current	36A (10/1000 μs) data
Shunt capacitance	<5 pF data
Response time	<1 ns
Ambient operating temperature	0 to 40° C (32 to 104° F)
Storage temperature	-30 to 70°C (-22 to 158° F)
Ambient operating humidity	10 to 95% noncondensing
Certifications	CE, FCC, IC, UL
