Ubiquiti Nanostation Loco 5AC
The Ubiquiti airMAX NanoStation AC Loco (LOCO5AC) is
an indoor/outdoor, compact, high-performance CPE, featuring airMAX AC
technology and a dedicated WiFi radio for management.
- AVAILABILITY: In Stock
- PRODUCT CODE: 100-10214
- CATEGORY: Networking

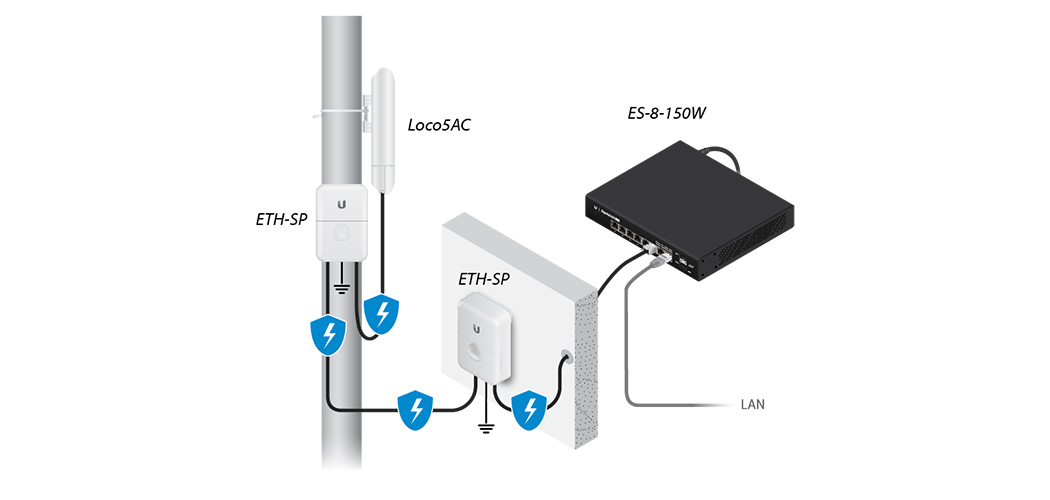

Wall Mounted
Pole Mounted

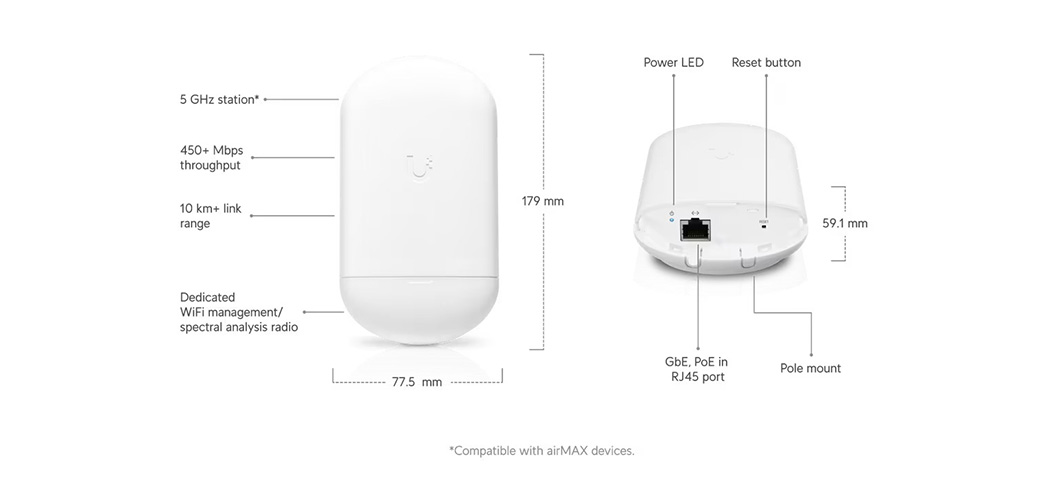

Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 179 x 77.5 x 59.1 mm (7.1 x 3.1 x 2.3") |
| Weight | 180 g (6.4 oz) |
| Enclosure material | UV-stabilized plastic |
| Mounting | Pole mounting kit (Included) |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power supply | 24V, 0.3A gigabit PoE supply (Not included) |
| Supported voltage range | 22–27V DC |
| Max. power consumption | 7W |
| LEDs | Power, Ethernet, (4) signal strength |
| Ambient operating temperature | -40 to 70° C (-40 to 158° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
| System | |
| Gain | 13 dBi |
| Channel bandwidths | 10/20/30/40/50/60/80 MHz |
| Cross-pol isolation | 20 dB min. |
| Max. VSWR | 1.8:1 |
| Beamwidth | 45° (H-pol) / 45° (V-pol) / 45° (Elevation) |
| Polarization | Dual linear |
| Operating Frequency (MHz) | |
| Worldwide | 5150-5875 MHz |
| USA U-NII-1 U-NII-2A U-NII-2C U-NII-3 | 5150-5250 MHz 5250-5350 MHz 5240-5725 MHz 5725-5850 MHz |
| Management Radio (MHz) | |
| Worldwide | 2412 - 2472 MHz |
| US/CA | 2412 - 2462 MHz |
-
Data SheetDownload
