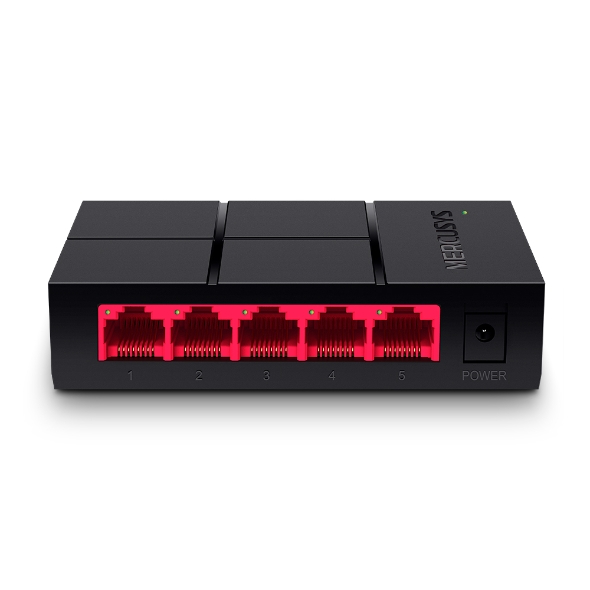

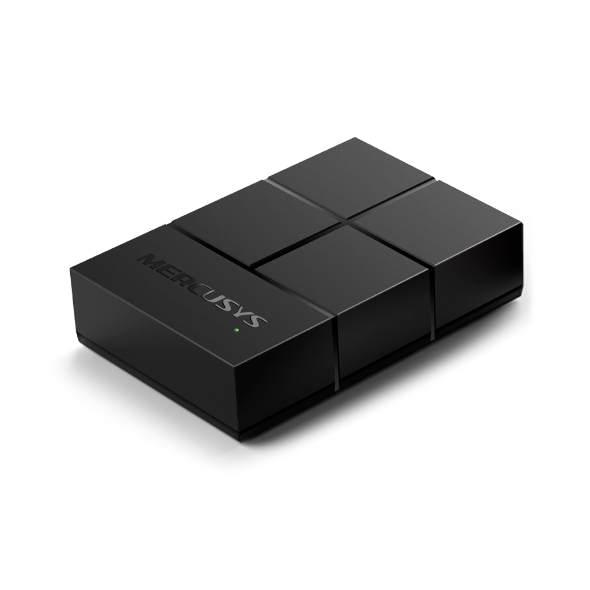

MERCUSYS MS105G 5-Port 10/100/1,000 Mbps Desktop Switch
Looking for the right device for quick and easy network
expansion? This five-port switch with Gigabit Ethernet ports will do the
job. It is up to 10 times faster that conventional 10/100Mbps interfaces. The MS105G is

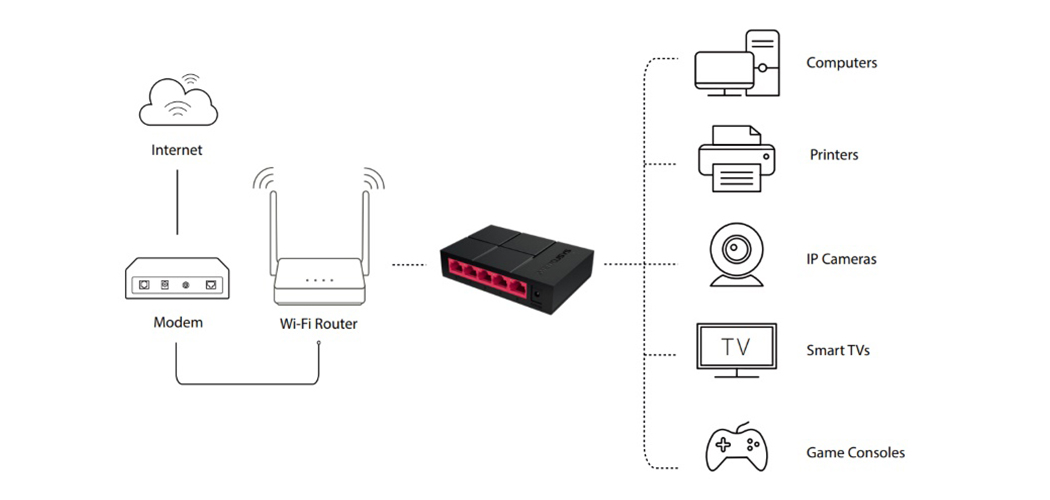

fully compatible with Smart TVs, computers, printers, IP cameras, game consoles
and more. With this wide range of applications, the Mercusys MS105G switch
is ideal for households as well as small offices and businesses.
- AVAILABILITY: In Stock
- PRODUCT CODE: 100-10205
- CATEGORY: Networking
1 Gigabit Ethernet
4 / 5 - Ports
Unmanageable
Non PoE
Technical Specifications
- Hardware
- Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD
- Dimensions 105×70×24.9 mm
- Interfaces
5 10/100/1000Mbps Ports, Auto-Negotiation, Auto MDI/MDIX
- External Power Supply
5V/0.6A
- Data Rates
10/100/1000 Mbps at Half Duplex
20/200/2000 Mbps at Full Duplex
- Buffer Capacity
512 Kbit
- Jumbo Frame
16 KB
- LED
Ethernet Ports (1, 2, 3, 4, 5), Power
- Software
- Transfer Method
Store and Forward
- Others
- Package Contents
• 5-Port 10/100/1000Mbps Desktop Switch (MS105G)
• Power Adapter
• Quick Installation Guide
-
Data SheetDownload
