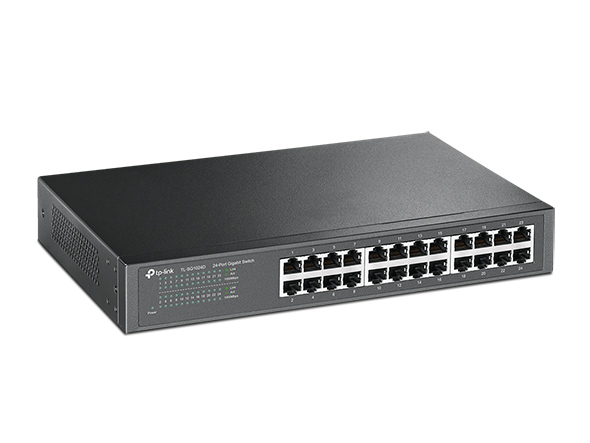

TP-LINK TL-SG1024D 24-Port Gigabit Desktop/Rackmount Switch

Rs. 33,350.00

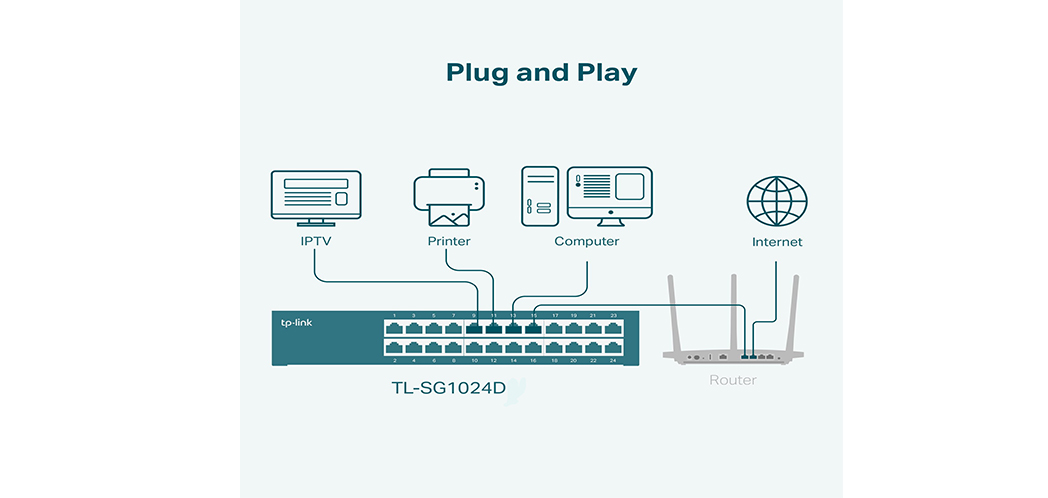

The TP-Link TL-SG1024D is a 24-Port Gigabit Desktop/Rackmount Switch designed to boost network capacity with high-speed 10/100/1000 Mbps ports, enabling smooth large file transfers. Ideal for offices or creative environments, it supports auto MDI/MDIX for easy plug-and-play setup without cable type concerns. With energy-efficient technology, it reduces power consumption by up to 20%, making it an eco-friendly and reliable choice for expanding business networks.

AVAILABILITY: In Stock
PRODUCT CODE: 100-10237
CATEGORY: Networking

1 Gigabit Ethernet

Unmanageable

Non PoE

24 /26 /28 - Ports

Add to Cart

Technical Specifications

HARDWARE FEATURES
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
Interface	24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity	Fanless
Physical Security Lock	No
Power Supply	100-240VAC, 50/60Hz
Power Consumption	Maximum: 13.1W (220V/50Hz)
Dimensions ( W x D x H )	11.67.11.7 in. (29418044 mm)
Mounting	Rack Mountable
Max Power Consumption	13.62W(220V/50Hz)
Max Heat Dissipation	46.44BTU/h

PERFORMANCE
Switching Capacity	48Gbps
Packet Forwarding Rate	35.7Mpps
MAC Address Table	8K
Advanced Functions	• Isolation Mode: Ports 1-22 • Loop Prevention: Ports 1-24
Jumbo Frame	10KB
Green Technology	Yes
Transfer Method	Store-and-Forward

OTHERS
Certification	FCC, RoHS

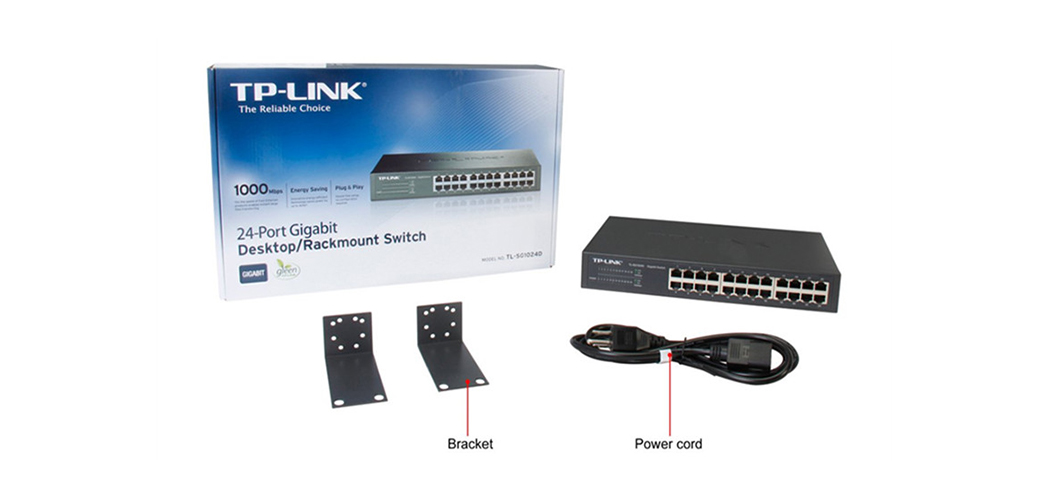

Package Contents	24-Port Gigabit Desktop/Rackmount Switch Power Cord Installation Guide Rackmount Kits Rubber Feet
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing
