TP-LINK TP-EAP225 AC1200 WIRELESS MU-MIMO GIGABIT OUTDOOR ACCESS POINT

Rs. 46,200.00

The TP-Link EAP225-Outdoor is a wireless MU-MIMO Gigabit indoor and outdoor access point. EAP225-Outdoor supports simultaneous dual band speed of up to 1200Mbps. Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, EAP225-Outdoor can communicate with multiple clients at the same time which making it ideal for high density environment. EAP225-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands. With high transmission power and high gain omnidirectional antennas, EAP225-Outdoor provides stable wireless coverage at a range up to 200m+* at 2.4GHz and 300m+* at 5GHz in outdoor settings

  • AVAILABILITY: In Stock
  • PRODUCT CODE: NA
  • CATEGORY: Networking

Wi-Fi 5 (IEEE 802.11ac)

Indoor/Outdoor

Wall Mounted

Pole Mounted


HARDWARE FEATURES

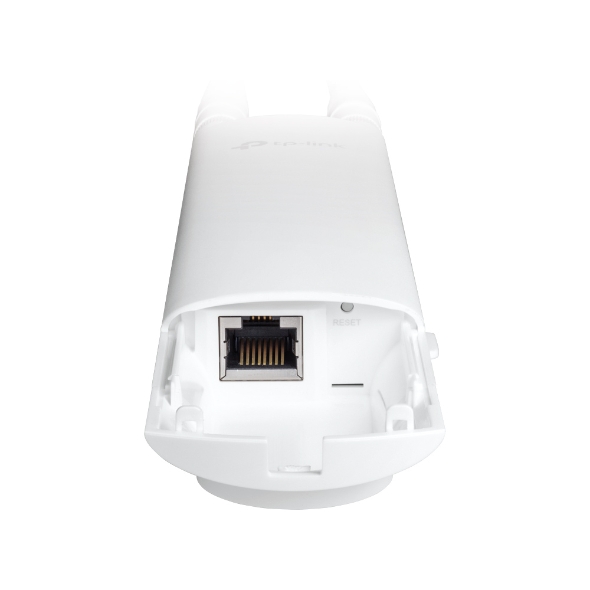

Interface1× Gigabit Ethernet (RJ-45) Port (Support 802.3af/at PoE (Alternative A) and Passive PoE)
ButtonReset
Power Supply• 802.3af PoE
• 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Max. Power Consumption10.5W
Dimensions ( W x D x H )1.8 × 1.1 × 8.5 in (46 × 26.7 × 214.9 mm)
(without antenna & mounting kit)
Antenna2 Dual-Band Omni Antennas (External Detachable)
• 2.4 GHz: 2× 3 dBi
• 5 GHz: 2× 5 dBi
Weatherproof EnclosureIP65

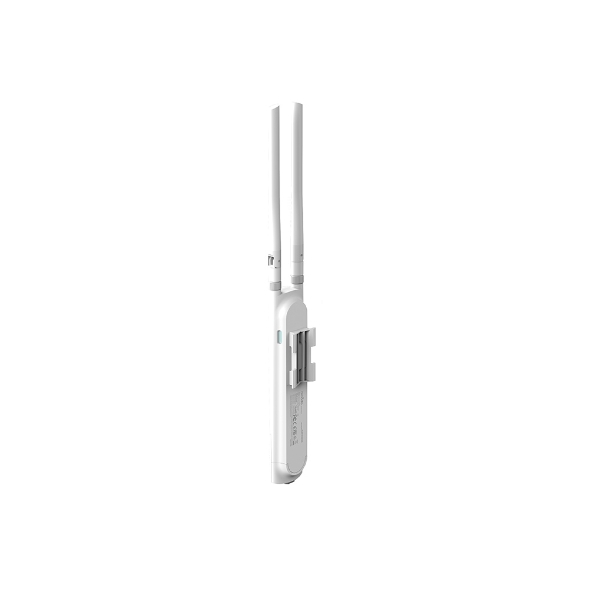

MountingPole/Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless StandardsIEEE 802.11a/b/g/n/ac
Frequency2.4GHz, 5GHz
Signal Rate• 802.11ac: 6.5 Mbps to 867 Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80)
• 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT 20/40)
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11Mbps
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Functions• Multiple SSIDs(Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• Seamless Roaming*
• Omada Mesh*
• Airtime Fairness
• Beamforming
• Band Steering
• Load Balance
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
Wireless Security• Captive Portal Authentication*
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
Transmission Power• CE: <20 dBm (2.4 GHz, EIRP), <27 dBm(5 GHz, EIRP)
• FCC: <23 dBm (2.4 GHz), <22 dBm(5 GHz)
Management Features
Omada AppYes
Centralized Management• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud AccessYes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email AlertsYes
Management MAC Access ControlYes
SNMPv1, v2c, v3
System Logging Local/Remote SyslogYes
SSHYes
Web-based ManagementYes
L3 ManagementYes
Multi-site ManagementYes
Management VLANYes
Zero-Touch ProvisioningYes. Requiring the use of Omada Cloud-Based Controller.
OTHERS
CertificationCE, FCC, RoHS

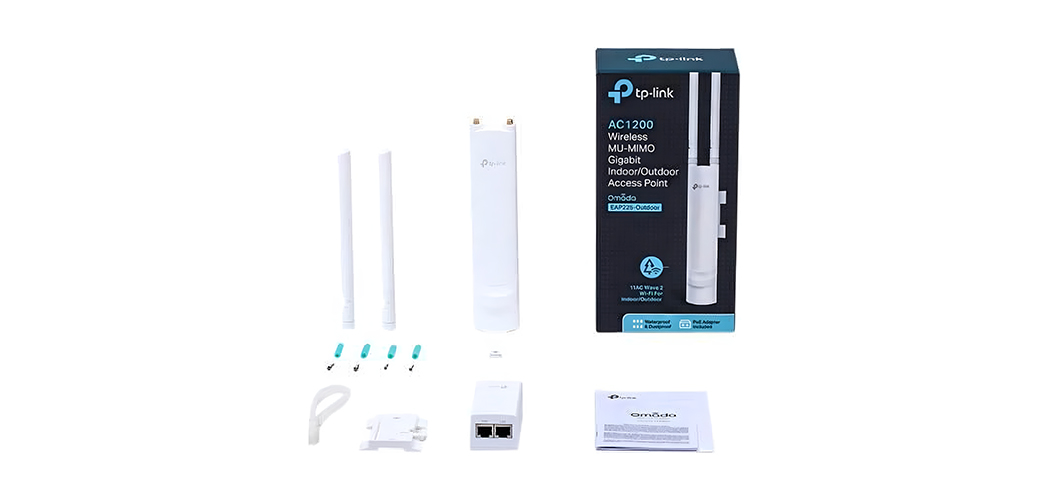

Package Content• Access Point EAP225-Outdoor
• Passive PoE Adapter
• Power Cord
• Mounting Kits
• Installation Guide
• Waterproof Ruber Insert
• Waterproof Antenna
System RequirementsMicrosoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment• Operating Temperature: -30–70 ℃ (-22–158 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
