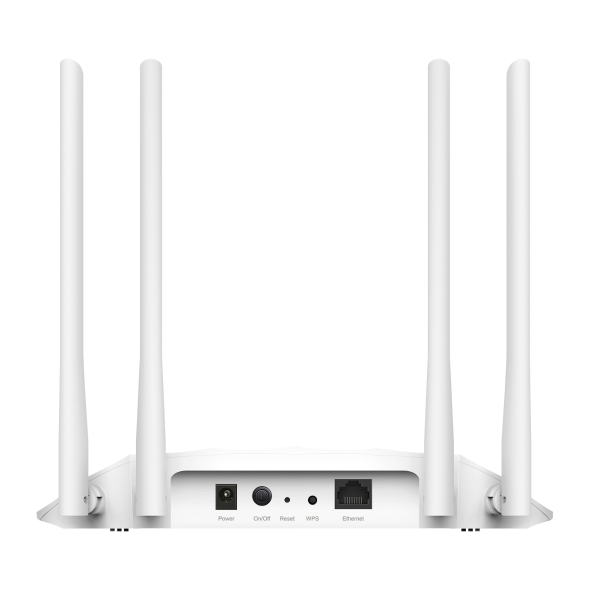

TP-LINK TL-WA1201 AC1200 Dual-Band Wi-Fi 5 Wireless Access Point

Rs. 18,960.00

This AC1200 Dual-Band Access Point delivers speeds up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz. It supports Passive PoE for flexible power and data delivery, features MU-MIMO for efficient multi-device performance, and offers multiple modes including Access Point and Range Extender. With Beamforming antennas for wider coverage and a captive portal for secure access, it’s ideal for high-performance, scalable wireless networking.

AVAILABILITY: In Stock
PRODUCT CODE: 100-10207
CATEGORY: Networking

Wi-Fi 5 (IEEE 802.11ac)

Indoor

Wall Mounted

Add to Cart

Technical Specifications

HARDWARE FEATURES
Interface	1× 10/100/1000 Mbps Ethernet Port (Supports Passive PoE)
Button	Power On/Off Button, WPS Button, Reset Button
External Power Supply	12V/1.5A
Wireless Standards	IEEE802.11b/g/n 2.4 GHz, IEEE 802.11ac/n/a 5 GHz
Dimensions ( W x D x H )	8.9 × 5.7 × 1.5 in (225×145.5×37 mm)
Antenna Type	4 Fixed High Performance Antennas

WIRELESS FEATURES
Frequency	2.4 GHz and 5 GHz
Signal Rate	867 Mbps at 5 GHz, 300 Mbps at 2.4 GHz
Reception Sensitivity	5 GHz: 11a 6 Mbps: -95 dBm, 11a 54 Mbps: -81 dBm 11ac VHT20(MCS0): -94 dBm, 11ac VHT20(MCS8): -71 dBm 11n HT40(MCS0): -91 dBm, 11n HT40(MCS7): -71 dBm 11ac VHT80(MCS0): -88 dBm, 11ac VHT80(MCS9): -63 dBm 2.4 GHz: 11g 54Mbps: -78 dBm 11n HT20(MCS0): -92 dBm, 11n HT20(MCS7): -74 dBm 11n HT40(MCS0): -88 dBm, 11n HT40(MCS7): -72 dBm
Transmit Power	< 30dBm
Wireless Modes	Access Point, Range Extender, Client, Multi-SSID
Wireless Functions	Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Wireless Multicast Forwarding, DHCP Server, Access Control
Wireless Security	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions
DHCP	Server, DHCP Client List
Quality of Service	WMM
Advanced Functions	Captive Portal

OTHERS
Certification	CE, FCC, RoHS
Package Contents	Wireless Access Point TL-WA1201 Power Adapter RJ45 Ethernet Cable Quick Installation Guide PoE Power Injector
Environment	Operating Temperature: 0°C ~ 40°C(32°F ~ 104°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Protocol Support	IPv4, IPv6
