TP-LINK TL-SL1226P 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch

Rs. 75,350.00

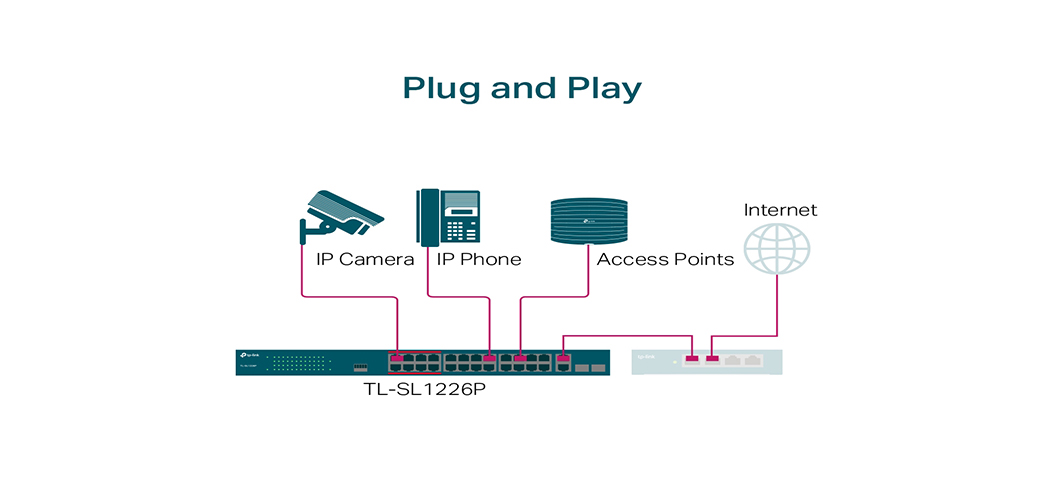

Expand your network device capacity with the TL-SL1226P 24-Port 10/100 Mb/s PoE+ Compliant Unmanaged Switch from TP-Link. Featuring 24 10/100 Mb/s PoE+ compliant 30W ports with a 250W power budget, this unmanaged switch allows you to operate compatible devices such as IP cameras, IP phones, access points, and more. This device has an 8.8 Gb/s switching capacity and a 6.54 Mpps forwarding rate with a plug-and-play desktop or rack-mountable design that operates without requiring any additional hardware or software. Adjusting its DIP switches puts the ports into extend mode, which increases the PoE range from 328' with a 100 Mb/s data throughput to up to 820.21' at 10 Mb/s, making it ideal for long-range camera installations. Ports 1 through 8 can be set to Priority Mode for enhanced video quality and all the ports can be put in Isolation Mode for increased security. There are also two Gigabit Ethernet ports to connect compatible devices such as network storage and two combo Gigabit SFP slots for fiber lines.

  • AVAILABILITY: In Stock
  • PRODUCT CODE: 100-10273
  • CATEGORY: Networking

Unmanageable

PoE

24 /26 /28 - Ports

SFP Ports / Combo Ports

Fast Ethernet

Fast Ethernet + 1G Uplink


HARDWARE FEATURES

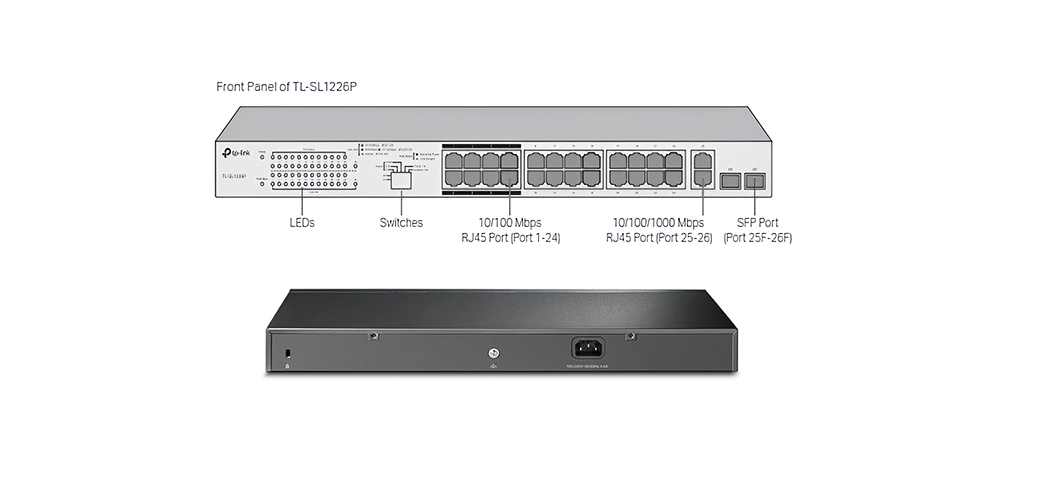

Interface
  • 24× PoE+ 10/100 Mbps RJ45 Ports
  • 2× 10/100/1000 Mbps RJ45 Ports
  • 2× Combo Gigabit SFP Slots
  • Network Media
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-X MMF, SMF
  • Fan Quantity2 Fans
    Physical Security LockYes
    Power Supply100-240 VAC, 50/60 Hz
    Packet Forwarding Rate6.5472 Mpps
    PoE Ports (RJ45)
  • Standard: 802.3at/802.3af compliant
  • PoE Ports: Port 1 – Port 24
  • PoE Power Budget: 250 W
  • Mac Address Table8 K
    Jumbo Frame10 KB
    Switching Capacity8.8 Gbps
    Dimensions ( W x D x H )17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
    Max. Power Consumption18.32 W (220/50 Hz. no PD connected)
    294 W (220/50 Hz. with 250 W PD connected)
    Max. Heat Dissipation62.47 BTU/h (no PD connected)
    1002.54 BTU/h (with 250 W PD connected)
    SOFTWARE FEATURES
    Advanced Features
  • Compatible With IEEE 802.3at/af Compliant PDs
  • Extend Mode (Up to 250m PoE power supply and data transmission)
  • Priority Mode
  • Isolation Mode
  • PD Detection
  • Intelligent Power Supply
  • Mac Address Auto-Learning and Auto-Aging
  • IEEE802.3x Flow Control
  • Transmission MethodStore-And-Forward
    OTHERS
    CertificationCE, FCC, RoHS
    Package Content
  • TL-SL1226P
  • Power Cable
  • Installation Guide
  • Two mounting brackets and the fittings
  • Environment
  • Operating Temperature: 0–50 °C (32–122 °F)
  • Storage Temperature: -40–70 °C (-40–158 °F)
  • Operating Humidity: 10–90% non-condensing
  • Storage Humidity: 5–90% non-condensing
