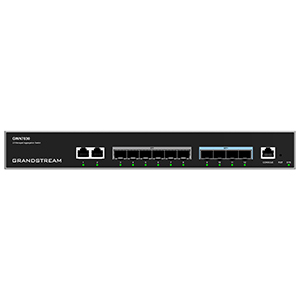

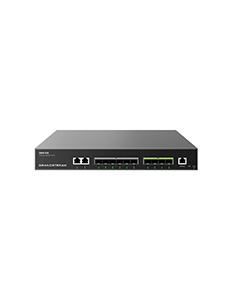

Grandstream GWN7830 Enterprise Layer 3 Managed Aggregation Switch with 6 x SFP, 4 x 10Gigabit SFP+, 2 x GigE Ports

Rs. 77,900.00

The Grandstream GWN7830 Series comprises Layer 3 aggregation managed switches designed to empower enterprises in establishing scalable, secure, high-performance, and intelligent business networks that are easily controllable and capable of handling peak loads. It offers advanced VLAN functionality for versatile traffic segmentation, enhanced QoS to prioritise network traffic, IGMP/MLD Snooping for optimising network performance, and robust security features to guard against potential threats.

AVAILABILITY: Pre Order
PRODUCT CODE: 100-10291
CATEGORY: Networking

1 Gigabit Ethernet

Manageable

SFP Ports / Combo Ports

Layer 3

Add to Cart

Technical Specifications

Details
Manufacturer's Code	GWN7830-AU
Network Protocol	IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x
Gigabit Ethernet Ports	2
SFP Ports	6
SFP+ 10Gigabit Ports	4
Total Non-Blocking Throughput	48Gbps
Switching Capability	96Gbps
Forwarding Rate	71.424Mpps
QoS	Port priority, Priority mapping, Queue scheduling, including SP, WRR, WFQ, SP-WRR, and SP-WFQ, Traffic shaping, Rate limit
Switching, Routing, and Multicast	16K static, dynamic, and filtering MAC addresses, 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN, 6 Link Aggregation, 2K ACL for Ethernet, IPv4, and IPv6, VLAN virtual interface, GVRP (pending), Spanning tree, 32 instances for STP/RSTP/MSTP, Static routing, Dynamic routing, including RIP, RIPng, OSPF and OSPFv3, Policy routing (pending), IGMP Snooping, MLD Snooping, MVR (pending)
Security	User hierarchical management and password protection, HTTPS, SSH, Telnet, 802.1X authentication, AAA authentication including RADIUS, TACACS+, Storm control, Port isolation, port security, sticky MAC, Filtering MAC address, IP source guard, DoS attack prevention, ARP inspection, DHCP Snooping, Loop protection including BPDU protection, root protection(pending) and loopback protection(pending), Kensington Security Slot (Kensington Lock) support
Mounting	Desktop, Wall-Mount or Rack-Mount(rack-mounting kits included)
System LEDs	1x tri-color LED for device tracking and status indication
Data Transferring LEDs	12x green-color
Fan	Nil
Environmental Operation	0°C to 45°C, humidity 10% to 90% RH(Non-condensing), Storage: -10°C to 60°C, humidity: 10% to 90% RH(Non-condensing)
Dimensions	330mm(L)x175mm(W)x44mm(H)
Unit Weight	1.91Kg
Compliance	FCC, CE, RCM, IC, UKCA
