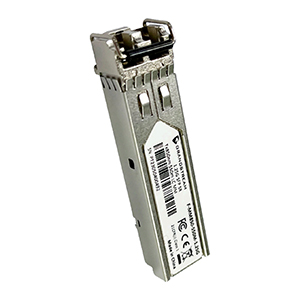

Grandstream F-MM850-550M-1.25G SFP Fiber Module (Multi-Mode, 850nm, 550-Meter, 1.25Gbps)
Grandstream Network offers a wide variety of fiber modules. All of them are hot-pluggable small-form factor transceiver modules integrated with the high sensitivity PIN receiver and signal conditioner for 1.25/10 Gigabit Ethernet applications. SFP modules support very low EMI and excellent ESD protection. Featuring low power consumption, these fiber modules are ideal for enterprise LAN networks and other optical links.
- AVAILABILITY: Coming Soon
- PRODUCT CODE: NA
- CATEGORY: Networking
Technical Specifications
Fiber Mode
- Multi-Mode Fiber
Connector Type
- Duplex LC
DDM
- Yes, I2C for integrated Digital Diagnostic Monitoring
Nominal Wavelength
- 850nm
Data Rate
- 1.25Gbps SFP
Max Power Consumption
- 0.8W
Transfer Distance
- 50/125µm(OM2): 0.55km
- 62.5/125µm(OM1): 0.3km
TX Power
- -10 to -3dBm, ±3dB
RX Power
- -18 to -3dBm, ±3dB
Operation Voltage
- 3.3V±0.3V
Environmental
- Operation: 0℃ to 70℃, humidity: 5% to 85%
- Storage: -40℃ to 85℃
Unit Weight
- 15.80g
Standards
- SFF-8472, SFP MSA, IEEE 802.3z, RoHS-6
Compliance
- FCC, CE, FDA
-
Data SheetDownload
