Dintek PowerMAX+ Cat.6A 4 Pair S/FTP Patch Cord Component Level- LSZH - 2m 1201-06097

Rs. 0.00

DINTEK PowerMAX+TM Shielded Foil Wrapped UTP Patch Cords are key components of the PowerMAX+TM S/FTP end-to-end solution. They are specifically designed to support high speed data networks for 10-Gigabit Ethernet applications and are fully tested to meet ANSI/TIA-568.2-D Cat.6A channel requirements. The patch cables are made from high quality shielded four pair 26AWG stranded wire.

DINTEK PowerMAX+TM patch cords are pre-terminated with RJ45 shielded plugs and feature anti-snag strain relief boots. DINTEK recommends the entire range of PowerMAX+TM shielded products be used in an end-to-end system to maximize cabling performance.

AVAILABILITY: Coming Soon
PRODUCT CODE: NA
CATEGORY: Networking

Category-6A

Sheath Material-LSZH/LS0H

Patch Cords-Copper

S/FTP

Add to Cart

Technical Specifications

Technical Specifications

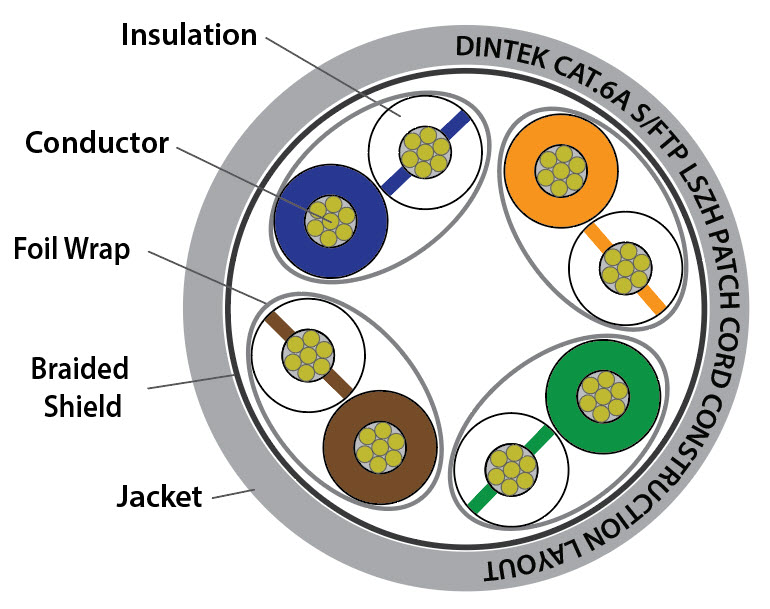

Cable Construction
Conductor
Material	Stranded Anneal Copper Wire
Wire Size	26AWG
Insulation
Material	Foam-PE
Diameter	1.05±0.05mm
Colors	Blue/White-Blue \| Orange/White-Orange \| Green/White-Green \| Brown/White-Brown
Jacket
Material	LSZH
Diameter	6.0 ±0.2mm
Colors	Gray
Foil Material	Aluminum Mylar (Aluminum inward) per pair
Foil Coverage	100% coverage with 25% overlapping
Shielding Material	Tinned Copper braid
Shielding Coverage	Tinned Copper braid
RJ45 Plug
Plug Type	Shielded RJ45 plug
Contact Material	Copper alloy 50u” gold plated over nickel
Strength	20lbs. min
Durability	750 cycles min.
Wiring schemes	T568B (or T568A on request)
Electrical
Impedance	15Ω/100m at 20℃
Capacitance Unbalance Pair to Ground	330pf/100m Max
D.C.R (Max.)	14.8 ohm/100m at 20℃
DC Insulation Resistance	1500MΩ/100m min.
Resistance Unbalance	3% MAX./100m
