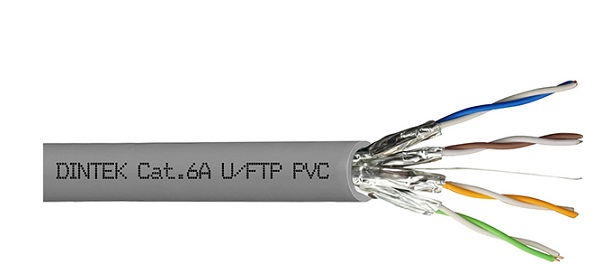

Dintek PowerMAX+ 4P Cat.6A U/FTP 23AWG PVC Cable - 305m 1105-06023
- AVAILABILITY: Pre Order
- PRODUCT CODE: NA
- CATEGORY: Networking
Category-6A
Sheath Material-PVC
U/FTP
Technical Specifications
Technical Specifications | |
|---|---|

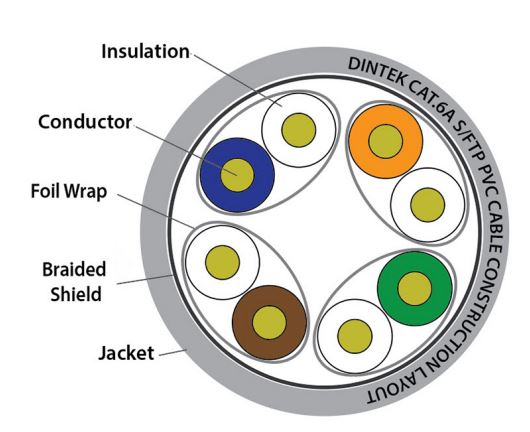

| Construction | |
| Conductor | |
| Material | Pure Annealed Copper |
| Wire Size | 23AWG |
| Strand Type | Solid Core |
| No. Of Pairs | 4P |
| Insulation | |
| Material | Polyethylene |
| Thickness | 0.396mm +0.05 / - 0.011 mm |
| Diameter | 1.35mm ± 0.1mm |
| Colors | Blue/White | Orange/White | Green/White | Brown/White |
| Pair Foil Wrap | Aluminum-mylar tape with tinned copper drain |
| Jacket | |
| Material | PVC |
| Thickness | 0.5 mm ± 0.02mm |
| Diameter | 6.60mm ± 0.5mm |
| Color | Gray |
| Jacket Rating | CM |
| Foil Shield | None |
| Braided Shield | None |
| Physical Ranges | |
| Jacket | |
| Cold Bend Test | -20 ± 2°C x 4hrs no crack |
| Min. Bending Radius | Min. 8 x Cable Diameter |
| Max. Pulling Tension | 110N |
| Installation Temperature | 0°C to +50°C |
| Operating Temperature | -20°C to +60°C |
| Electrical | |
| Conductor Resistance | Max. 9.38 Ω/100m at 20°C |
| DC Resistance Unbalance | Max. 2% at 20°C |
| Pair-to-Ground Capacitance Unbalance | Max. 1600 pF/km at 1 kHz |
| Dielectric Strength of Insulation | DC 1 KV for 1 min |
| Insulation Resistance Test (500V) | Min. 5000 MΩ/Km at 20°C |
| Mutual Capacitance | Max. 5600 pF/100m at 1 kHz |
| Impedance 1 ~ 500Mhz | 100Ω ± 15% |
| Nominal Velocity Of Propagation | 78% |
-
Data SheetDownload
