Dintek PowerMAX7 4P Cat.7 S/FTP 23AWG LSZH Dca Cable - Gray 1105-05007

Rs. 0.00

DINTEK PowerMAX7TM shielded Cat.7 / Class F S/FTP LSZH Dca cable is guaranteed to exceed Cat.7 specifications as set down in ISO/IEC standards. Our PowerMAX7TM solution comprises shielded Cat.7 component compliant keystones, patch cords and unloaded patch panel options, both straight and angled.

When combined with DINTEK’s shielded Cat.7 / Class F S/FTP LSZH Dca cable, an end-to-end channel exists that maximizes data throughput and provides headroom for future technologies operating to, and beyond 10 Gigabit Ethernet.

AVAILABILITY: Pre Order
PRODUCT CODE: NA
CATEGORY: Networking

Category-7

Sheath Material-LSZH/LS0H

S/FTP

Add to Cart

Technical Specifications

Technical Specifications

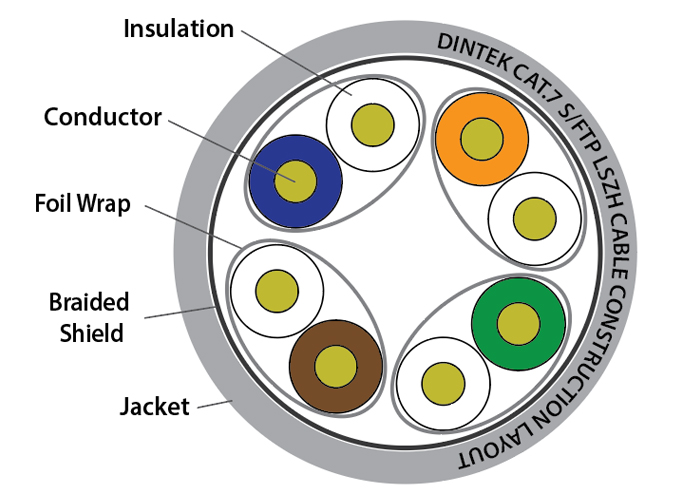

Construction
Conductor
Material	Pure Annealed Copper
Wire Size	23AWG
Strand Type	Solid Core
No. Of Pairs	4P
Insulation
Material	Polyethylene
Thickness	0.429mm +0.05 / - 0.011 mm
Diameter	1.42mm ± 0.05mm
Colors	Blue/White \| Orange/White \| Green/White \| Brown/White
Pair Foil Wrap	Aluminum-mylar tape
Jacket
Material	LSZH
Thickness	0.5 mm ± 0.02mm
Diameter	7.10mm ± 0.3mm
Color	Gray
CPR Reaction To Fire Classification	Dca,s2,d2,a1
Foil Shield	None
Braided Shield	Tinned copper braid
Physical Ranges
Jacket
Cold Bend Test	-20 ± 2°C x 4hrs no crack
Min. Bending Radius	Min. 8 x Cable Diameter
Max. Pulling Tension	110N
Installation Temperature	0°C to +50°C
Operating Temperature	-20°C to +60°C
Electrical
Conductor Resistance	Max. 9.5 Ω/100m at 20°C
DC Resistance Unbalance	Max. 2% at 20°C
Pair-to-Ground Capacitance Unbalance	Max. 1600 pF/km at 1 kHz
Dielectric Strength of Insulation	DC 1 KV for 1 min
Insulation Resistance Test	Min. 5000 MΩ/Km at 20°C
Mutual Capacitance	Max. 4.6 nF/100m at 1 kHz
Impedance 1-100MHz	100Ω ± 15%
Impedance 100~200MHz	100Ω ± 22%
Impedance 200~600MHz	100Ω ± 25%
Nominal Velocity Of Propagation	74%
