Grandstream UCM6300A IP PBX with Support 250-Users & 50-Concurrent calls

Rs. 85,000.00

The Grandstream UCM6300A allows businesses to build powerful and scalable unified communication and collaboration solutions. This series of IP PBXs provide a platform that unifies fundamental business communications needs, including voice, instant messaging (IM), voice meetings, audio web meetings, data, analytics, mobility, facility access, intercoms and more

AVAILABILITY: Pre Order
PRODUCT CODE: NA
CATEGORY: Telecommunication

Add to Cart

Technical Specifications

Details
Manufacturer's Product Code	UCM6300A
Analog Telephone FXS Ports	None
PSTN Line FXO Ports	None

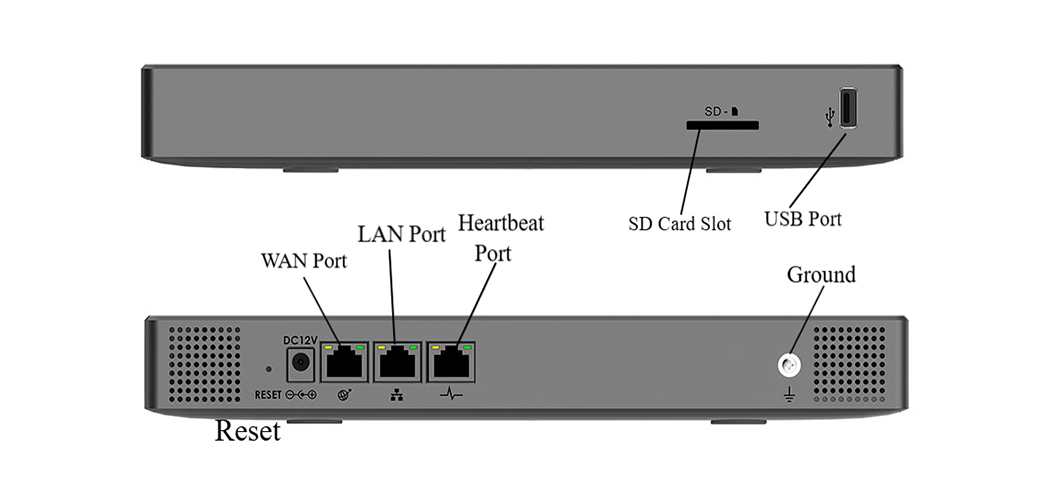

Network Interfaces	Three self-adaptive Gigabit ports (switched, routed or dual mode) with PoE+
NAT Router	Yes (supports router mode and switch mode)
Peripheral Ports	1USB 3.0, 1SD card interface
LED Indicators	None
LCD Display	320x240 color LCD with touch screen for Shortcut Keys and Scroll Bar
Reset Switch	Yes, long press for factory reset and short press for reboot
Voice-over-Packet Capabilities	LEC with NLP Packetized Voice Protocol Unit, 128ms-tail-length carrier grade Line Echo Cancellation, Dynamic Jitter Buffer, Modem detection & auto-switch to G.711, NetEQ, FEC 2.0, jitter resilience up to 50% audio packet loss
Voice and Fax Codecs	Opus, G.711 A-law/U-law, G.722, G722.1 G722.1C, G.723.1 5.3K/6.3K, G.726-32, G.729A/B, iLBC, GSM; T.38
QoS	Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
API	Full API available for third-party platform and application integration
Telephony Operating System	Based on Asterisk version 16
DTMF Methods	In-band audio, RFC4733, and SIP INFO
Provisioning Protocol & Plug-and-Play	Mass provisioning using AES encrypted XML configuration file, auto-discovery & auto-provisioning of Grandstream IP endpoints via ZeroConfig (DHCP Option 66 multicast SIP SUBSCRIBE mDNS), eventlist between local and remote trunk
Network Protocols	TCP/UDP/IP, RTP/RTCP, ICMP, ARP, DNS, DDNS, DHCP, NTP, TFTP, SSH, HTTP/HTTPS, PPPoE, STUN, SRTP, TLS, LDAP,HDLC, HDLC-ETH, PPP, Frame Relay (pending), IPv6, OpenVPN®
Disconnect Methods	Busy/Congestion/Howl Tone, Polarity Reversal, Hook Flash Timing, Loop Current Disconnect
Media Encryption	SRTP, TLS, HTTPS, SSH, 802.1X
Universal Power Supply	Input: 100 ~ 240VAC, 50/60Hz; Output: DC 12V, 1.5A
Dimensions	270mm(L) x 175mm(W) x 36mm(H)
Weight	Unit Weight: 705g; Package Weight: 1131g
Temperature & Humidity	Operating: 32 - 113ºF / 0 ~ 45ºC, Humidity 10 - 90% (non-condensing)Storage: 14 - 140ºF / -10 ~ 60ºC, Humidity 10 - 90% (non-condensing)
Mounting	Wall mount & Desktop
Caller ID	Bellcore/Telcordia, ETSI-FSK, ETSI-DTMF, SIN 227 – BT, NTT
Polarity Reversal/Wink	Yes, with enable/disable option upon call establishment and termination
Call Center	Multiple configurable call queues, automatic call distribution (ACD) based on agent skills/availability/ workload, in-queue announcement
Customizable Auto Attendant	Up to 5 layers of IVR (Interactive Voice Response) in multiple languages
Maximum Call Capacity	Users: 250; Concurrent calls (G.711): 50 Max; Concurrent SRTP calls (G.711): 50
Maximum Attendees of Conference Bridges	3 meeting rooms and up to 50 parties
Call Features	Call park, call forward, call transfer, call waiting, caller ID, call record, call history, ringtone, IVR, music on hold, call routes, DID, DOD, DND, DISA, ring group, ring simultaneously, time schedule, PIN groups, call queue, pickup group, paging/intercom, voicemail, call wakeup, SCA, BLF, voicemail to email, fax to email, speed dial, call back, dial by name, emergency call, call follow me, blacklist/whitelist, voice meeting, eventlist, feature codes, busy camp-on/ call completion, voice control
Firmware Upgrade	Supported by Grandstream Device Management System (GDMS), a zero-touch cloud provisioning and management system, It provides a centralized interface to provision, manage, monitor and troubleshoot Grandstream products
